    Two and Three Wire System 4-20mA Output Pressure Sensor for Automatic Detection System

    Ask Lasest Price
    Brand Name : Kacise
    Model Number : GXPS353
    Certification : Intrinsically safe mode E, RoHS; CE
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pieces per week
    • Product Details
    • Company Profile

    Two and Three Wire System 4-20mA Output Pressure Sensor for Automatic Detection System

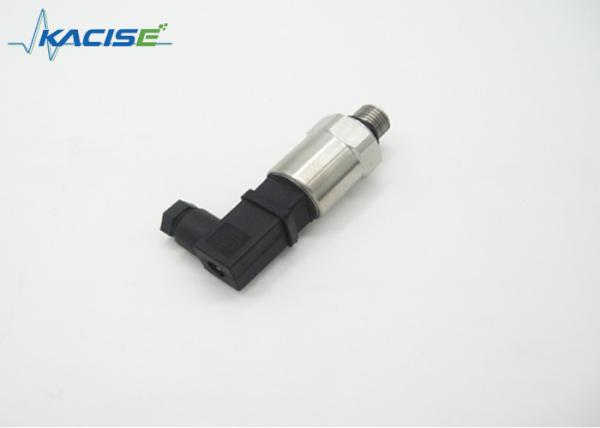

    GXPS353 Two and Three Wire System 4-20mA Output Pressure Sensor for Automatic Detection System

    Application


    • Compressor
    • Floor house water supply
    • Hydraulic control
    • Air conditioning unit
    • Automobile engine
    • Automatic detection system
    • Hydraulic unit
    • Refrigeration equipment

    Feature


    • Accuracy: ±0.25, ±0.5, ±1%F.S
    • High stability, high reliability
    • Import German ceramic core body
    • Digital calibration
    • Variety of connector choice
    • Variety of pressure port
    • Zero can be arbitrarily displaced
    • Variable drive can be between 50

    to 100%

    • CE certificate
    • RoHS compliant

    Introduction


    GXPS353 series pressure transmitter is a high-volume, low cost OEM, civil & industrial use, high-quality, high-reliability products. Small size, light weight, compact structure, and widely used in the scene of the compressor, automobile, air conditioning, etc. pressure measurement. The product is made of high quality stainless steel structure, pressure core and sensor chips are imported from Germany, tuning and digital compensation techniques, and by the intrinsically safe certification and CE certification.

    Standard voltage current output mode.


    Electronic interface and signals definition



    Parameter


    Spec.Value
    Pressure range0~2bar ......600bar
    Load pressure1.5times nominal value pressure (1.5X)
    Rupture pressure3times nominal value pressure (3X)
    Accuracy±0.25%F.S, ±0.5%F.S, ±1.0%F.S
    StabilityTypical value 0.5%F.S, Max. value: 1%F.S
    Operating temperature-40°C~125°C
    Storage temp.-40~120℃
    Compensation temperature-10°C~ 80°C
    Medium compatibilityAll Caustic Medium Compatible with 1Cr18Ni9Ti
    Electrical performance2 wire system3 wire system
    Output signal4~20mA0.5~4.5V
    Power supply10~30Vdc5Vdc10~30Vdc
    Load pressure(U-10)/0.02(Ω)>100kΩ
    Insulation>100M Ω@50V
    Electric strength500V@60 second
    Vibration/Impact10g/5~2000Hz, axes X/Y/Z20g sine 11ms
    Pressure durable2×106pressure circle @25°C
    Electrical connectionPackard, Hirsmann , air plugs, fixed cable, water proof cable
    Pressure portG1/4, NPT1/4, 7/16-20UNF, M20×1.5, G1/2,
    Pressure typeG, SResponse time: 10ms
    CertificateIntrinsically safe mode E, RoHS; CE
    EMI/EMCEMI: EN50081-1/-2; EMC: EN50082-2
