Jin Machine Best Selling Products Plastic
Resin Dryers PE Dehumidifying Dryer
Product Description

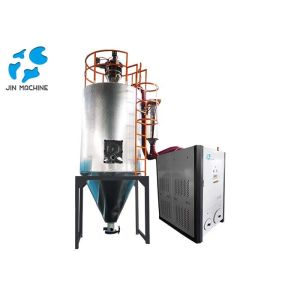

CSG series is a fully automatic drying system with zeolite
desiccant beds, which can be used with Hopper Bank Series and
multi-hopper systems. It can adapt and automatically control
operating parameters based on type and quantity of polymer.Up to
40% energy saving in comparison with traditional dryers
1. Ease of maintenance with access process, regeneration and air
filters
2. Self-adaptive PID temperature control from 60℃ to 300℃
3. No use of cooling water
4. No moving or rotating internal parts
5. No need of manual control, Full auto-adaptive operation
6. On-board heating unit on hopper
7. Diagnostic functions,Dewpoint, heater and temperature alarm
8.Visual and audible alarms available
9. Anti-stress function protecting polymers against overheating
10. Sturdy, well proven design for extended operational life
11. Visual and audible alarms available
Main Technical Parameters
| Model | Volume(L) | Capability(kg) | Fan Power | Heating Power |
| Dry Fan(KW) | Rebirth Fan(KW) | Drying Heating(KW) | Rebirth Heating(KW) |
| CSG-315 | 315 | 200 | 3 | 0.37 | 15 | 7.5 |
| CSG-800 | 800 | 500 | 5.5 | 1.1 | 24 | 12 |
| CSG-1600 | 1600 | 1000 | 7.5 | 1.5 | 36 | 18 |
| CSG-3200 | 3200 | 2000 | 18.5 | 3 | 54 | 27 |
| CSG-5000 | 5000 | 3000 | 22 | 4 | 63 | 36 |
| CSG-8000 | 8000 | 5000 | 33 | 4 | 96 | 36 |
CSG plus 8000 series
This series expands CSG standard series maintaining its
characteristics while offering increased production capacity.
Its advanced thermodynamics based on zeolite trible tower design
with three desiccant cartridges and three pumps technology: two to
process air production and one for saturated tower regeneration.
1. High-performance 3-bed
2. Three pumps
3. Dew point -30℃ to -70℃, dewpoint monitor
4. Dedicated to large-scale production up to 1200kg/h
