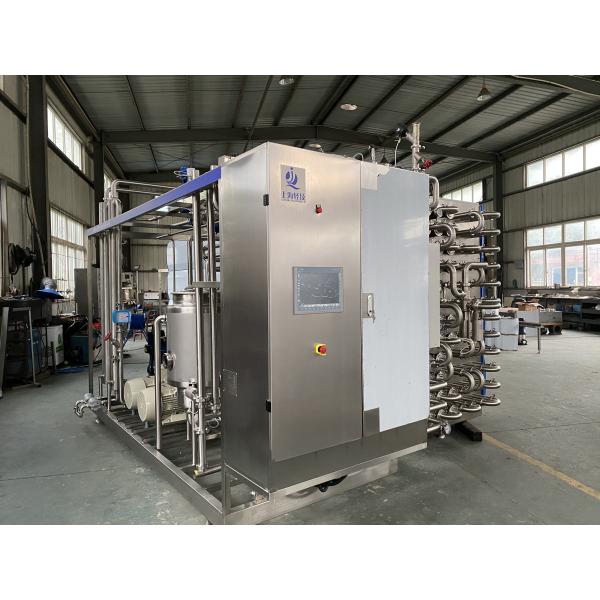

New Customized Uht Sterilizer For Tomato Paste/Milk/Orange Juice
Processing Equipment Tubular Heat Exchanger
Download to learn more
tubular sterilizer production introduce.pdf
Click to learn more
https://www.youtube.com/watch?v=6MGcJ049e6o&list=PLMqO7-CTBpXtUf9nzvIHNa66uz3jZ9MOI&index=6
Uht Sterilizer Overview:
The new custom-made UHT sterilizer with tubular heat exchanger is
an advanced high-performance solution tailored for the efficient
and reliable sterilization of tomato paste, milk and orange juice.
This cutting-edge equipment combines ultra-high temperature (UHT)
processing with an advanced tubular heat exchanger to ensure
optimal safety, quality and shelf life of your products.
Uht Sterilizer Main features:
Customizable designs:
Customized solutions: designed to meet specific processing needs,
whether it's tomato paste, milk or orange juice.
Flexible production capacity: Customizable to meet different
production volumes and processing requirements.
Advanced ultra-high temperature sterilization technology:
Efficient: UHT treatment eliminates microorganisms quickly and
effectively, ensuring extended shelf life without the need for
preservatives.
PRECISE HEATING: Features precise temperature control to maintain
product integrity and nutritional value.
Innovative tubular heat exchanger:
Efficient heat transfer: Utilize tubular heat exchangers to achieve
superior heat transfer efficiency, minimizing energy consumption
and maximizing thermal performance.
Reliable Performance: Designed to handle high pressures and
temperatures while maintaining consistent heat exchange.
User-friendly control system:
Intuitive interface: Equipped with a modern control panel, it is
easy to operate, set up and monitor the sterilization process.
Real-time monitoring: Includes sensors for real-time temperature
and pressure monitoring to ensure optimal processing conditions.
High quality construction:
Material: Made of durable, corrosion-resistant stainless steel for
long-lasting performance and easy cleaning.
Design: Robust and reliable operation even under continuous use.
Energy efficiency:
Cost-effective: Designed to optimize energy consumption while
delivering high performance and reducing operating costs.
Sustainability: Help reduce environmental footprint through
efficient use of energy.
Hygienic and easy to maintain:
Hygienic Design: Features smooth surfaces and easily accessible
components for thorough cleaning and maintenance.
Quick Disassembly: Facilitates simple maintenance and inspection
procedures.
Uht Sterilizer typical application
| Typical application | Mango pulp | Coconut water | UHT milk | Fruit juice |
| Flow | 1000l/h | 3000l/h | 5000l/h | 8000l/h |
| Power | 13 | 11 | 12 | 20 |
| Temperature in | 40 | 4 | 4 | 55 |
| Sterilizing temperature | 108 | 80/ 140 | 137 | 125 |
| Holding time | 120 | 90 /8 | 5 | 15 |
| Temperature out | 40 | 10/35 | 25 | 85 |
| Note | The flow and temperature could tailor-made as per project demand
from 500-20,000L/h
|
Uht Sterilizer Characteristics
Automatic Uht Sterilizer is designed and produced absorbing in foreign advanced technology
and adopting many years’ experience .It is widely used for the
sterilization of fruit juice, tea drinks, milk and virgin pulp and
other liquid food.
The whole system adopts programmable control, operating system is
image HMI, easy to know all running status of all components;
control system takes the real-time control of temperature and data
collection and storage. All valves, electric control system adopt
well-known brands. It is easy to clean, with advanced structure,
reliable usage.
UHT Sterilizer can carry out heating, heat preservation, heat
recovery and cooling operations. At the phases of preheating
section and sterilization, heat can be fully recycled. It adopts
multi-phase to carry out heating, heat preservation, heat recovery
and cooling operations, which can enhance the usage efficiency of
heat energy.
In the whole process of sterilization, the temperature of the
material are in full automatic control. When using the UHT
sterilizer, according to user requirements the discharge
temperature can be adjusted as per the aseptic sterilization filler
requires.
Uht Sterilizer Features
1. Main structure is made of stainless steel 304 or 316L
2. Thorough sterilization, low energy consumption
3. Sterilization is stable and operation is simple
4. Independent control cabinet, HMI PLC control
5. Could with aseptic filling machine carry out CIP and SIP
simultaneously
Uht Sterilizer application:
New custom UHT sterilizers are ideal for a variety of applications
including:
Tomato paste: ensures high quality tomato paste and extends shelf
life.
Milk: Provides reliable pasteurization while retaining flavor and
nutritional value.
Orange juice: Provides fresh, safe, long-lasting high-quality
juice.
Why choose us:
Expertise: Extensive experience in designing and manufacturing
advanced sterilization equipment.
Support: Dedicated customer support and after-sales service to
ensure optimal performance and maintenance.
Innovation: Committed to integrating the latest technology to
improve efficiency and product quality.
