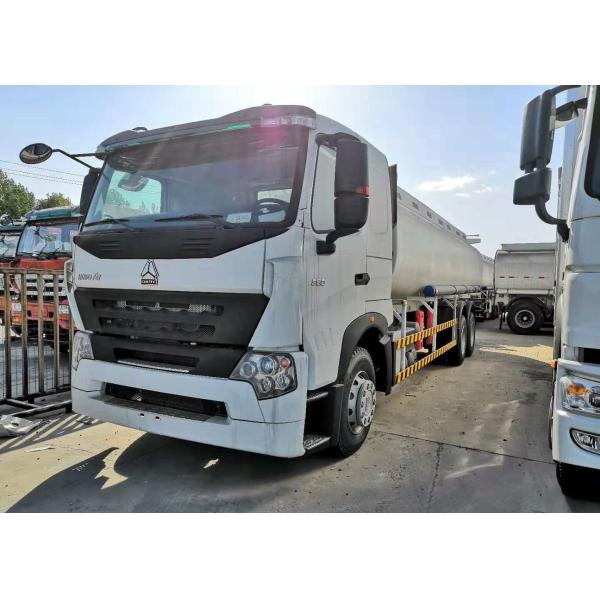

Sinotruk Howo A7 6*4 Oil Truck Liquid Tank Truck 380 Horse Power
20CBM Tank
SINOTRUK
Jinan Heavy Truck Import & Export Co., Ltd. is a professional heavy
duty truck manufacturer in China. We focus on the export and
service of all kinds of heavy duty trucks, machinery and original
spare parts.
As a member of SINOTRUK, our main products are SINOTRUK HOWO, HOWO
A7,T7H, STEYR, STEYR KING, GOLDEN PRINCE (SWZ10), HOKA, HOHAN and
HOVA brand series trucks, including Head tractor trucks (Prime
movers), Dump trucks (Tippers), Concrete mixer trucks, Bulk cement
trucks, Cargo trucks, Water/Oil tank trucks, Sprinkling trucks,
Garbage trucks, Log carrier trucks, All-wheel drive trucks,
Fire-fighting trucks, Refrigerator trucks, Crane Trucks, Concrete
Pump Trucks, Semi-trailers, tank trailers and so on.
With good communication and services, our company has exported our
products to Nigeria, Angola, Ghana, Libya, Cameroon, Guinea, Congo,
Mali, Tanzania, Ethiopia, Algeria, Sudan, Egypt and other African
countries; Peru, Chile, Venezuela, Colombia, Brazil and Argentina
in South America; Ukraine, Russia, Tajikistan, Kazakhstan,
Thailand, Philippines,Malaysia, Indonesia, Pakistan, Brunei and
Bangladesh in Asia and other countries and regions.
Our company is located in Jinan City, the capital of Shandong
Province. Jinan is an old base of China's industry and an old
industrial base, which means that there are many industrial
manufacturers in Jinan, forming a chain of production, without
transportation costs. Adhering to the principle of "honest and
trustworthy", we promise to try our best to provide the most
efficient services for worldwide customers.
Specification:
| Model | ZZ1257N4347D |
| Engine | Engine model: D10.38-40, Euro IV emission standard, 4 stroke
injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling, mechanical high pressure
oil pump system Maximum output: 380PS at 1900 rpm Maximum torque: 1290Nm at 1200-1500rpm Bore: 126mm Stroke: 130mm Displacement: 9.726L Compression ratio: 17.5:1 Specific fuel consumption: ≤189g/kWh Engine oil filling quantity: 25L Air compressors: Twin cylinders air compressors |
| Clutch | SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating
with air assistance |
| Transmission | Transmission, model HW19710, 10 forward and 2 reverse Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00;
13.91/3.18(R) |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling
flange |
| Front Axle | New HF9 series, with drum brake system Steering with double T-cross section beam |
| Rear Axle | HC16 pressed axle housing, single reduction and differential locks
between axles; with drum brake system. Ratio: 4.3 |
| Chassis | Frame: High-strength U-profile frame, all cold riveted cross
members and reinforced subframe Front suspension: semi-elliptic leaf springs with hydraulic
telescopic double-action shock absorbers and stabilizer Rear suspension: semi-elliptic leaf springs with hydraulic
telescopic double-action shock absorbers and stabilizer Spare wheel carrier: with one spare wheel |
| Steering | ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1 |
| Braking System | Front and rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake: spring energy, compressed air operating on rear
wheels Auxiliary brake: engine exhaust brake |
| Wheel & Types | Rims: 8.5-20,10 hole-steel Types: 12.00R20 |
| Driver’s cab | Long cab, all steel forward control, 55° hydraulic tilting to the
front, 2-arm windscreen wiper system with 3 speeds, VDO electrical control system, laminate windscreen, with casted-in
radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with
stereo radio/cassette recorder, sun visor, safety belt, air conditioner, adjustable steering wheel. |
| Electrical System | Operating voltage:24V, negative grounded Starter: 24V, 7.5KW Alternator: 3-phrase, 28V, 1540W Batteries: 2×12V, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators
and reverse lamp |
| Dimensions in mm | Wheel base (mm) Front wheel track (mm) Rear wheel track (mm) Front overhang (mm) Rear overhang (mm) Approach angle(°) Departure angle(°) Overall Dimension (mm) | 4300+1400 2022/2041 1830 1500 1920 16 23 9120×2496×2958 |
| Weight in kg | Permissible loading capacity (kg) Dead weight (kg) Gross vehicle weight (kg) Front axle loading capacity (kg) Rear axle loading capacity (kg) | 15830 9170 25000 7000 2×9000 |
| Performance | Maximum driving speed (km/h) Maximum gradeability (%) Minimum ground clearance (mm) Minimum turning radius (m) Fuel consumption (L/100km) | 102(reference data) 62 314 10.8 36(reference data) |
Oil tank volume: 21,000 liters, tank thickness is 4 mm,Two rooms, 2
Manholes, 2 valve.
|
Product Description
The powder material transport vehicle, also known as the bulk
cement truck, consists of a special automobile chassis, a bulk
cement vehicle tank body, a gas pipeline system, and an automatic
unloading device. It is suitable for bulk transportation of fly
ash, cement, lime powder, ore powder, granular alkali and other dry
materials with particle diameter not more than 0.1mm. Mainly used
in cement plants, cement warehouses and large construction sites,
it can save a lot of packaging materials and loading and unloading
labor.
Competitive Advantage:
1) competive price, cost-effective
2) fast delivery time, we can arange production according to your
needs exactly and quickly
3) The optimized hydraulic control system helps to avoid wrong
operation, it has higher safety and running efficiency.
4) The hydraulic sytem using HYVA brand or Domestic famouse brand
Q. What is your payment terms ?
A: 30% TT before produce and 70% TT before shipment . or 100% LC at
sight ( irrevocable ).
Q. How long time you could delivery goods to customer ?
A : Generally 45 days of working , after we receive your deposits .
Q:How you can ensure you have deliveried goods to customers ?
A: We will give you the complete shipping information details for
you confirmed .
Q. How you could supply customers after sales services ?
A: We will reply you at first time and help you resolve the
problems within 24 hours . If it really need us to your local , we
will send you professional person to your local to help you resolve
problems without any hesitation , supply you all-around after-sales
services including machine maintenance and operation and technical
training services etc .
