Programming Logic Controller / Flexible S7-1500 PLC Logic Controller

Ask Lasest Price
Brand Name :
Model Number :	S7-1500 Digital Module
Certification :	CE
Price :	consult for best discount
Payment Terms :	T/T, , Western Union,Paypal,, MoneyGram,, L/C
Supply Ability :	500 Pcs/month
Delivery Time :	2-5 days

Add to Cart

Product Details
Company Profile

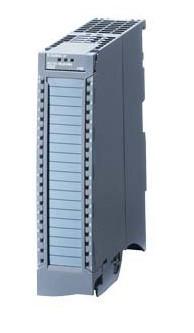

Programming Logic Controller / Flexible S7-1500 PLC Logic Controller

S7-1500 PLC CPU Module Digital Module Input Modules And Output Modules

Overview

Digital inputs/outputs for SIMATIC S7-1500 and ET 200MP
For flexible adaptation of the controller to the corresponding task
For subsequent expansion of the system with additional inputs and outputs
Technical Specifications For Some types

Article number	6ES7521- 1BH00-0AB0	6ES7521- 1BL00-0AB0	6ES7521- 1BH50-0AA0	6ES7521- 1FH00-0AA0	6ES7521- 7EH00-0AB0
	S7-1500, DI 16X24VDC HF	S7-1500, DI 32X24VDC HF	S7-1500, DI 16X24VDC SRC BA	S7-1500, DI 16X230VAC BA	S7-1500, DI 16 X 24...125V UC HF
General information
Product type designation	DI 16x24VDC HF	DI 32x24VDC HF	DI 16x24VDC SRC BA	DI 16x230VAC BA	DI 16x24 ... 125 V UC HF
HW functional status	FS01	FS01	FS01	FS01	FS01
Firmware version	V2.1.0	V2.1.0	V2.0.0	V2.0.0	V1.0.0
● FW update possible	Yes	Yes	Yes	Yes	Yes
Product function
● I&M data	Yes; I&M0 to I&M3	Yes; I&M0 to I&M3	Yes; I&M0 to I&M3	Yes; I&M0 to I&M3	Yes; I&M0 to I&M3
Engineering with
● STEP 7 TIA Portal configurable/integrated as of version	V13 SP1 / -	V13 SP1 / -	V12 / V12	V12 / V12	V13 SP1 / -
● STEP 7 configurable/integrated as of version	V5.5 SP3 / -	V5.5 SP3 / -	V5.5 SP3 / -	V5.5 SP3 / -	V5.5 SP3 / -
● PROFIBUS as of GSD version/GSD revision	V1.0 / V5.1	V1.0 / V5.1	V1.0 / V5.1	V1.0 / V5.1	V1.0 / V5.1
● PROFINET as of GSD version/GSD revision	V2.3 / -	V2.3 / -	V2.3 / -	V2.3 / -	V2.3 / -
Operating mode
● DI	Yes	Yes	Yes	Yes	Yes
● Counter	Yes	Yes	No	No	No
● Oversampling	No	No			No
● MSI	Yes	Yes	Yes	Yes	Yes
Supply voltage
Rated value (DC)	24 V	24 V
permissible range, lower limit (DC)	20.4 V	20.4 V	20.4 V
permissible range, upper limit (DC)	28.8 V	28.8 V	28.8 V
Reverse polarity protection	Yes	Yes
Input current
Current consumption, max.	20 mA; with 24 V DC supply	40 mA; 20 mA per group with 24 V DC supply
Power
Power available from the backplane bus	1.1 W	1.1 W	0.9 W	1 W	1.2 W
Power loss
Power loss, typ.	2.6 W	4.2 W	2.8 W	4.9 W	2.2 W; At 24 V DC; 6.0 W at 125 V AC
Digital inputs
Number of digital inputs	16	32	16	16	16
Digital inputs, parameterizable	Yes	Yes	No	No	Yes
Source/sink input	P-reading	P-reading	m-reading	P-reading	Yes
Input characteristic curve in accordance with IEC 61131, type 1				Yes
Input characteristic curve in accordance with IEC 61131, type 3	Yes	Yes	Yes		Yes; at 24 V DC
Digital input functions, parameterizable
● Gate start/stop	Yes	Yes
● Freely usable digital input	Yes	Yes
● Counter
— Number, max.	2	2
— Counting frequency, max.	1 kHz	1 kHz
— Counting width	32 bit	32 bit
— Counting direction up/down	Up	Up
Input voltage
● Type of input voltage	DC	DC	DC	AC	AC/DC
● Rated value (DC)	24 V	24 V	24 V		24 V; 48 V, 125 V
● Rated value (AC)				230 V; 120/230 V AC, 50/60 Hz	24 V; 48 V, 125 V (50 - 60 Hz)
● for signal "0"	-30 to +5V	-30 to +5V	-5 to +30V	0V AC to 40V AC	-5 ... +5 V
● for signal "1"	+11 to +30V	+11 to +30V	-11 to -30V	79V AC to 264V AC	+11 ... +146 V
Input current
● for signal "1", typ.	2.5 mA	2.5 mA	4.5 mA	11 mA; At 230 V AC and 5.5 mA at 120 V AC	3 mA; at 24 V DC

S7-1500 PLC Digital Module Main Models:
6ES75211FH000AA0 6ES75211BL000AB0 6ES75211BH500AA0 6ES75211BH000AB0 6ES75211BL100AA0 6ES75211BH100AA0 6ES75225HF000AB0 6ES75225FF000AB0
6ES75221BL000AB0 6ES75221BH000AB0 6ES75221BF000AB0 6ES75221BL100AA0
6ES75221BH100AA0

Products range(May get discount):
S7-400 PLC, S7-1200 PLC, S7-200 PLC, S7-300, S7-400, ET200, HMI, TOUCH PANEL, TDC, 6ES5, 6ES7, 6DD, controller, CNC , Etc
SIMATIC S7-200,SIMATIC S7-300,SIMATIC S7-400
LOGO , PG,SIMATIC HMI, Wincc
ET200M, ET200S, Profibus
MicroMaster 420, MicroMaster 430, MicroMaster 440 , VFD
, SINAMICS,, G110, G120, drive
SINUMERIK 810D,SINUMERIK 840D,SINUMERIK 840Di
SIMOTION D425,SIMOTION D435,SIMOTION D445
SIMOVERT, SIMOVERT MASTERDRIVES CONVERTER

Shipping:
1. We will ship most items within 3 working days after the payment is reached.
2. All the goods will be tested before shipment.
3. We can ship to you by DHL/TNT/UPS/EMS/Fedex... Or ship as your requirement.

Best Quality Assurance:
1. We only provide theoriginal new items, 100% make sure the best quality!
2.1 year warrant GUARRANTEE OF QUALITY
