Double Roller Extrusion Compound Fertilizer Granulator With CE
Certificate
Introduction of compound fertilizer granulator
Double roller press compound fertilizer granulator, belong to the
extrusion slip model, its working principle is: the motor drive the
belt and pulley, transfer to the drive shaft through the speed
reducer, through the open gear synchronously with the driven shaft,
the double rollers rotate in the opposite direction. The raw
material input through the feed hopper, and after the extrusion
molding, demoulding granulating, through a chain transfer to
crushing and screening, after separating , the finished granules
come out, and the powder will be back to the mixer, for granulation
again. With the continuous rotation of the motor, the continuous
input of material, to achieve mass production.
Our compound fertilizer granulator is a key fertilizer equipment in
compound fertilizer granulation. Roller-type granulator is a
new-designed fertilizer roller compaction granulation device
developed & researched by ourselves. Materials are granulated at
room temperature, and there is no drying process, more
energy-saving and cost-reducing. With the characteristics of small
investment, large profits, and quick results, the double roller
compactor granulator will bring investors bigger economic returns.
It can be used in compound fertilizer production with high, medium
and low concentration.
Application of compound fertilizer granulator
The compound fertilizer granulator is used in 30,000 t/y compound
fertilizer production line & other products manufacturing, such as
capsule filling particles, pigments, detergents, catalysts,
fertilizer, inorganic salts, calcium hypochlorite, pesticides,
oxides, etc., industrial dust recovery materials: such as foundry
dust, lead, zinc, aluminum dust, converter dust, grinding dust,
etc.
Parameter of compound fertilizer granulator
| Model | DZJ-II-2.0 |
| Product name | Compound fertilizer granulator |
| Voltage | 380V/50Hz, as your request |
| Capacity | 1.5-2.5 tons per hour |
| Granular dia | 2.5-20mm |
| Moisture | 2%-5% |
| Feeding size | <=0.5mm |
| Power | 18.5kw |

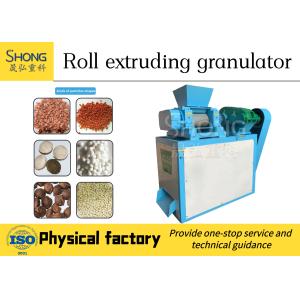

Picture of compound fertilizer granulator
