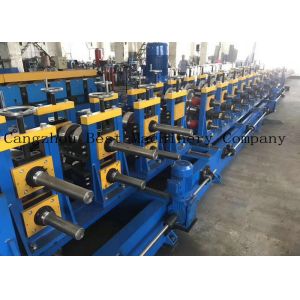

    CZ Interchangeable Automatic Roll Forming Machine 16Mpa Hydraulic Pressure

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : YX-300
    Certification : CE,BV,SGS
    Price : USD12500-25500/SET
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20sets/month
    Delivery Time : 5-60days
    • Product Details
    • Company Profile

    CZ Interchangeable Automatic Roll Forming Machine 16Mpa Hydraulic Pressure

    Hot Sale Automatic CZ Interchangeable Roll Forming Making Machine Supplier


    Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.


    1. Echnical parameters

    1.ConfigurationsManual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
    2.Control SystemPLC Inverter Encoder Touch Screen
    3.Main Frame400mm H-Beam
    4.Total Power22 kw
    5.Power Supply380V, 3-Phase,50Hz
    6.Forming Speed12-24m/min
    7.Roll Station18 stands
    8.Roller Diameter80mm
    9.Effective Width80-300mm
    10.Feeding Thickness1.5-3.0mm
    11.Backboard Thickness20mm
    12.Cutter StandardGCr12
    13.Roller StandardGcr15#
    14.Overall SizeAbout 8500×1000×1400mm
    15.Total WeightAbout 10T
    16.CustomAccording to customer's requirements

    NOTE: All technical parameters can be changed according to user s need, and only as a reference.


    2. C Z Purlin Roll Forming Machine Components specification

    (1) Manual Uncoiler

    Max.Capacity:5T

    (2)Pre- Cutting Device& Pre-Punching Device

    It adopts hydraulic motor drive and PLC computer-controlled to fix length of die cutting.

    Cutting length tolerance:±2mm

    Material:GCr12 with quenched treatment 60-62°C

    (3)Hydraulic System

    Match equipment: Electro motor, a set of hydraulic tank, a set of hydraulic oil pump, and electromagnetic valve.

    Power: 22 KW

    (4)Control System

    It adopts PLC control system, Color Touch Screen; the target length can be adjusted by it.

    Computed mode: automatic or manual

    (5)Encoder

    The counter gauges length, and modulates pulses.

    (6)Simple Stack

    It is used for loading the formed plate.


    3. Working flow:


    4. Features of CZ Purlin Roll forming Machine:

    C/Z purlin interchangeable rollformer can produce C, Z profiles. Produce from C to Z purlin by switch one side roller, only need about 15 minutes. This machine also can adjust roller horizontal distance to achieve C or Z purlins of the width with high precision automatic. And also save time and increase production.


    5. Our service:

    Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.

    Delivery: 30 days after receipt of advance payment

    Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 100USD/day.

    Warranty: 24 months limited warranty

    During warranty: parts are free but buyer pay for the shipping fee.
