Rack Shelf Machine Parameters
1. Material width:200-600mm
2. Forming stations: 18 stations
3. Suitable raw material: 0.7-1.2mm galvanized coil S235JR
4. Material of Roller: Gcr15, precision-machined, high frequency quenching HRC58-62, diameter of rollers: ＞150
6. Driven system: Chain Driven 1.5 inches
7. Chains’ material: 45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13
8. Cutting: Hydraulic Cutting Cr12mov
9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
10. Hydraulic Station Power: 4KW
11. Control system:PLC Panasonic with touch screen
Parts of machine
| name | quantity (set) |
| De-coiler | 1set |
| Punching | 1set |
| Level device | 1set |
| Hydraulic cutting and bending machine | 1set |
| Main roll forming machine | 1set |
| Run out table | 2 sets |
| Control panel | 1set |
| Subtotal FOB Shanghai | USD55,000 |
Racking Shelf Profile Drawing
Rack Shelf Machine Specifications
1. Manual uncoiler
a) Coil inner diameter : 460-520MM.
b) Coil/strip width: 300- 500MM.
c) Load capacity – 5T
d) Stands on a wheeled base to allow transverse strip adjustment.
2. Roll forming
In order to keep the product shape and precision, adopts welded sheet
structure, motor reducer drive, chain transmission,roller surfaces polishing, hard planting, heat treatment and galvanization treatment

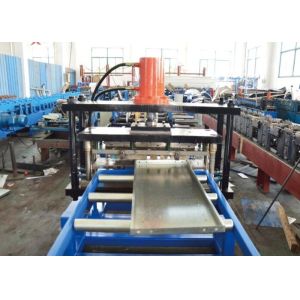

3. Hydraulic cutting
It adopts the hydraulic drive and automatic location to decide the
dimension and cut the target products
Components: It contains one set of blade, one hydraulic cylinder and one
cutter machine.
