1), Gray level 32-65536 to control, real image color and detail.
2), Fast key setting controller parameters with press-buttons. Such
as Driver Chip type, the Controller Serial Number, Program
Fragment, Play Speed,LED Brightness.
3), Display module to display control parameters and states.
4), Support remote setting controller parameters. Such as Driver
Chip type, the Controller
Serial Number, Program Fragment, Play Speed/Jump frame frequency,
LED Brightness and
On/Off time .
5), Support SD card to store animation data, convenient and quick.
6), Program fragments can be set up independently year, month, day
and week . Playing
regularly.
7), Support DMX512 agreement, 2 channel outputs .
8), Support the addressing function of MR-DMX05, DMX512AP, UCS512
DMX512 Chips
and so on.
9), A variety of drive chip control integration, set up by the
software to change the chip type,
the clock frequency, duty ratio, the gray level and other
parameters.
10), Support the synchronization of controllers.
11), Support the dc or ac power supply .
12), Time to lock encryption function.
13), Optical module application for environment/audio light control
.Interactive convenient to
adjust the brightness of lamps.
14), Support the standard USITT DMX512/1990 general and extension
agreements. Such as
DMX512, DMX512AP, UCS512, MY7221.

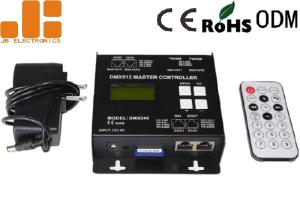

Parameters:
Product Name | Offline DMX512 Master Controller |
Model No. | DMX340 |
Control Color | RGB, RGBW, Full-color |
Control Pixels | 340 Pixels (1024 channels ) |
Output Ports | 2 ports DMX512/1990 signal |
The Light Gray Level | 256 level ~ 65536 level |
Input Voltage | AC12V |
Rated Power | 2W |
Control Mode | SD card storage and remote control |
Output Sockets | RJ45 / XLR |
Notices:
1), In DMX340 lighting control system: when using in
synchronization application ,we need to notice the only one
controller ID=1 we can set .In general ,No.1 controller is located
in the first one of all cascaded controllers .
2),The application range of the time switch of relay in general to
use only one DMX340 for project.Standard products without this
features.
RFQ:
1), The LCD of controller shows the PLAY00X,but press-button
doesn’t work.
Re: The SD card of controller hasn’t been formatted to FAT32 or SD
card problems . Usually can exchange the SD Card to deal with these
problems.
2), Under the way of sync-line synchronously,a series of
controllers behind No,2 one can’t save the parameters .
Re: Sync-line synchronously is subject to a No. 1 controller
.Otherwise, more controllers won't be able to synchronization, so
if you want to adjust the parameters such as speed, please adjust
the Numbers for 1 of the controller.
3), Under the way of sync-line synchronously,the time setting of
more DMX340 controllers can’t be set up the same .Whether it will
have an influence on the synchronization ?
Re: In this situation,the controller to read is the first time
information,other time is not effective, so will not affect the
synchronization.
Product Size:
DMX340 System Wiring Diagram:
