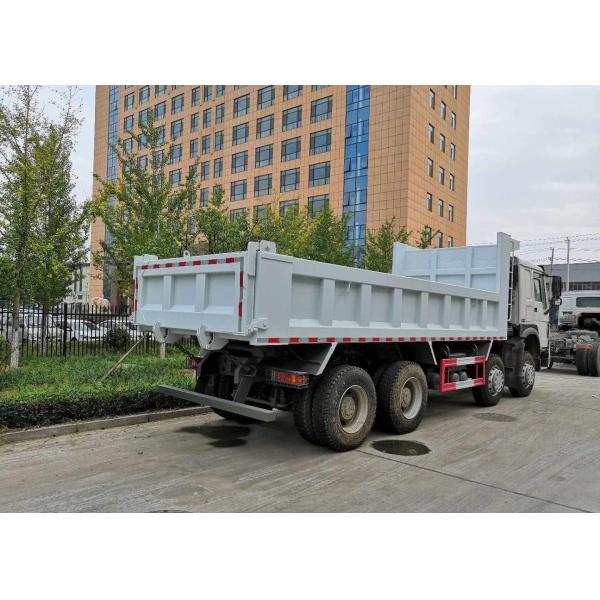

HOWO 8*4 Tipper Truck Heavy Duty Dump Truck 50 Tons Loading Dump
Truck
SINOTRUK:
Founded in 1956, Jinan General Auto Works Plant, the predecessor of
China National Heavy Duty Truck Group Co., Ltd. (SINOTRUK), is the
cradle of China's heavy-duty truck industry. The works manufactured
China's first heavy-duty truck - Huanghe JN150 8t truck in 1960,
and introduced a heavy-duty truck project from Steyr in 1983 as
China's first enterprise that introduced heavy truck manufacturing
technologies from abroad in an all-round manner. SINOTRUK was
established following the reform and restructuring in 2001, and has
become a domestic and overseas famous heavy-duty truck R & D and
manufacturing conglomerate after a dozen years of development. We
have initially built an international platform throughthe red-chip
listing in Hong Kong in 2007; in 2009, we forged a strategic
partnership with MAN whichholding a 25%+1 stake in SINOTRUK (Hong
Kong) Limited, and introduced D08, D20 and D26 engine technologies,
medium & heavy-duty truck axle technologies and corresponding
vehicle technologies, laying a solid foundation for our long-term
development. To date, we have become China's largest heavy truck
manufacturing base that has made a remarkable contribution to the
development of China's heavy-duty truck industry and economic
construction.
Since after the reform and restructuring, we have persisted in
independent innovation, vigorously implemented the strategy of
leading in technology and built core competitiveness with
independent intellectual property, thus becoming an enterprise with
the most patents in China's auto industry. SINOTRUK Technical
Development Center, among China's first group of national corporate
technical center, has a testing laboratory accredited by the China
National Accreditation Board for Laboratories, is capable of
developing and testing vehicles, engines, parts and material
processes, owns sophisticated processing and testing equipment, and
has been up to advanced world standards in terms of equipment such
as engine, vehicle, parts vibration and strength test equipment. In
2009, upon approval by the State, the National Heavy-duty Truck
Engineering Research Center was inaugurated in SINOTRUK, which
undertakes functions such as technical R & D, application
demonstration, achievement popularization and technical service in
China's heavy-duty truck industry.
Specifications:
| GVW30000kg Driving Type 8x4 |
| Model | ZZ3317N4667A |
| Cab | HW76 |
| Engine(Hp) | 371 |
| Power(Kw) | 273 |
| Transmission | HW19710 |
| Front Axle | HF9 |
| Steering | ZF8118 |
| Rear Axles | HC16 |
| Wheels & Tyres | 8.5/12.00R20 |
| Carriage Internal Dimensions(mm) | 8000x2300x1000 |
| Cubage (m3) | 19 |
| Steel thickness of Carriage(mm) | Floor:8mm/Side:6mm |
| Hydraulic Lift of Carriage | Front Lift |
| Dimensions(mm) | 11345×2550×3650 |
| Kerb weight (Kg) | 15880 |
| Engine | Model | WD615.47 |
| Horsepower | 371 |
| Maximum output Kw/r/min | 273/2200 |
| Maximum torque N.m/r/min | 1460/1300-1600 |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged &
inter-cooled, direct injection |
| Bore x Stroke | 126x130mm |
| Valve | 2 |
| Displacement | 9.726L |
| Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with
80℃ opening begin, Rigid fan |
| Cab | HW76 |
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with
air assistance |
| Transmission | SINOTRUK HW19710 transmission ,10 forward and 2 reverse |
| Front Axle | SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum
brakes. |
| Steering | ZF8118 Steering Gear Box ,hydraulic steering with power assistance. |
| Rear Axles | SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with
differential locks between wheels and axles, enforced STR
axle,ratio:5.73;The basic configuration of HOWO series construction
vehicle can be used in such bad environment as bad road condition,
heavy impact and overloading, which is the best choice for heavy
construction vehicle customers. |
| Brake System | Service brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air
operating on rear wheels |
| Wheels & Tyres | Rims:8.5-20,10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare
tire. |
| Electrics | Operating voltage:24V,negative grounded
Starter:24V,7.5 Kw
Alternator:3-phase,28V,1500 W
Batteries:2x12 V,165 Ah
horn,headlamps,fog lights,brake lights,indicators and reverse light |
| Oil Tank | Square type-300L Aluminum alloy fuel tank |
| Weight in kg | Gross vehicle weight 30000
Front axle loading capacity 9000
Rear axles loading capacity 2x16000 |
| Performance | Maximum driving speed (km/h) 75
Fuel consumption (1/100 km) 38 |
| Packing | Nude Pack.The packing of the commodity shall be in accordance with
the export standard packing of the manufacturer,be suitable for
long distance transportation of ocean and inland. The Seller shall
be take measures against moisture,shocks and rust according to the
special needs of the commodity. |
This model can meet the requirements of severe environment like
construction site and mining area.which can fullfiled you of short distance
transportation of mining rock and soil as well as engineering construction.
Competitive Advantage:
1) competive price, cost-effective
2) fast delivery time, we can arange production according to your
needs exactly and quickly
3) The optimized hydraulic control system helps to avoid wrong
operation, it has higher safety and running efficiency.
4) The hydraulic sytem using HYVA brand or Domestic famouse brand
