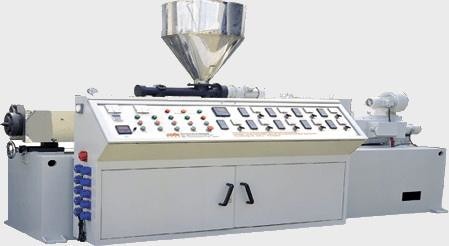

Ø20-50mm PVC Pipe Extrusion Line , 250kg / H Plastic Pipe Making
Machine Fully Automatic
Quick detail
1. First class pipe die was designed with many years experience.
Perfect twin pipe vacuum sizing systerm.
Controlled independentle umitary sctrcure twin pipe hauling
mechanism anf synchronous cutting device.
Optional length set and accurate adaption stacker.
2. Pipes made from PVC are usually manufactured by extrusion.This
process starts by feeding plastic material
from a hopper into the barrel of the extruder.The material is
gradually melted by the mechanical energy
generated by turning screws and by heaters arranged along the
barrel.The molten polymer is then forced into
a die,which shapes the polymer into a pipe that hardens during
cooling.
Description:
1. Product application of pvc pipe making machine
PVC pipe extrusion line is mainly used in making UPVC and PVC pipes
with various tube diameters and wall
thickness. Pipe is applied to agricultural and construction water
supply and drainage, overhead or
underground wire and cable.
2. Pvc plastic twin pipe extrusion line with various diameter and
wall thickness, from 16-800mm.
the plastic pipe production line mainly includes twin screw
extruder, pipe extrusion die, vacuum calibrating
water tank, spray cooling water tank, hauling unit, cutting unit
and stack unit.the extruder is specially designed
for producing variours pipe.
3. Pipe size range ø20-50mm
Extruder SJSZ51/105 SJSZ65/132
Extruder power 22kw 37kw
Extrusion capacity135kg/h 250kg/h
Max. production speed120kg/h
Main Technical Parameters:
| Extruder Model | SJSZ-51X105 | SJSZ-65X132 |
| Accessory Machine | GFDP-63 | GFDP-63 |
| Pipe Diameter | 16-63mm | 16-63mm |
| Production Speed | 12(m/min) | 12(m/min) |
| Max.Output | 160(kg/h) | 220(kg/h) |
Application:
PVC pipes are widely used for drinking water, irrigation, plumbing,
casing conduits, industrial applications,etc.
We manufacture competitive and reliable plastic extrusion machinery
for pipes using PVC. The machine is
well manufactured with superior technique to provide you the best
of output with very maximum utilization of
resources.
Our advantage:
experience:Our company have more than 15 years’ experience in designing and
manufacturing the extrusion
equipment; the core technology and equipment are communicating and
docking with the advanced European
plastics processing technology
Market: Our products have been sold to all over the China and exported to
countries all over the world, such as Russia, Ukraine, Armenia,
Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia,
Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan,
Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa,
Egypt,Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's
factory for installation and commissioning of the equipmnet and
training of workers;all you maintenance requirements to equipment
will be replied within 24 hours.
