    Metal Sheet Galvanized Roll Forming Machine Two Or Three Waves 13.5*1.85*1.6mm

    Ask Lasest Price
    Brand Name : JN
    Model Number : Customize
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 50 Sets per month
    Delivery Time : about 20 days
    • Product Details
    • Company Profile

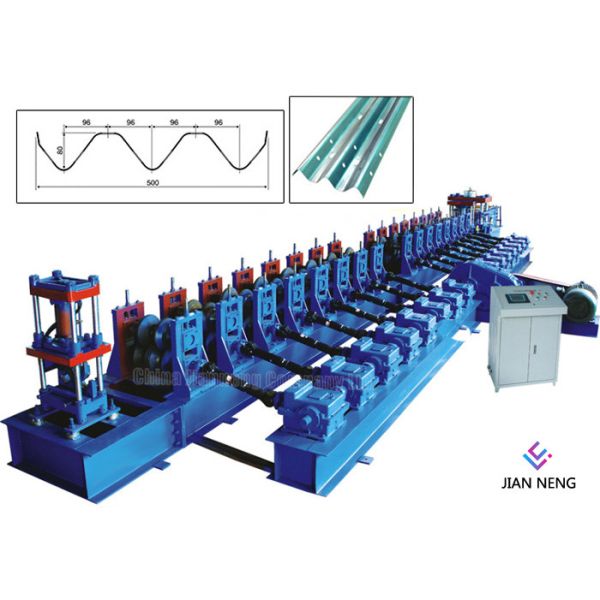

    Metal Sheet Galvanized Roll Forming Machine Two Or Three Waves 13.5*1.85*1.6mm

    Metal Sheet Galvanized Steel Highway Guardrail Two or Three Waves Roll Forming Machine


    Description:

    Highway guardrails have proven highly effective in reducing the frequency and severity of accidents. A recent Transportation Research Board study determined that guardrails are at least 97% effective in reducing injuries & fatalities. Since their inception during the 1960s, W-beam guardrails have protected millions of travelers by containing or deflecting run-off-road vehicles from impact with roadside hazards.

    Working Flow of Machine

    Processes: 10T Hydraulic de-coiler—Leveling device--Punching station--Roll forming machine—PLC system—Hydraulic system-Cutter—Output table

    Technical Parameter:

    Main Parameters of Metal Sheet Galvanized Steel Highway Guardrail Two or Three Waves
    Roll Forming Machine

    1Suitable to processColor steel plate, galvanized sheet,aluminum coils and etc.
    2Effective width310mm
    3Roller station

    17 rows forming
    7 roller leveling

    4Thickness of feeding material2.0-2.5 mm
    5Productivity8-12m/min
    6Rollers' material45# forging steel
    7Diameter of shaft100mm
    8Cutting tool material:GCr12 with quenched treatment 60-62°C
    9WeightAbout 6.9T
    10Size13.5*1.85*1.6mm
    11Voltage380V 50Hz 3phases
    12Wall thickness of main forming machine14mm steel plate
    13Main forming machine body300 mm H steel
    14Total power22+11 kw
    15Leveling power2.2 kw


    Features and Advantages:

    Metal Sheet Galvanized Steel Highway Guardrail Two or Three Waves Roll Forming Machine

    Repair parts are off the shelf - making them inexpensive and easily accessible
    Cepair parts are off the shelf - making them inexpensive and easily accessible
    ♥ Allows for radius as low as 355 m
    Only 19 inches wide making it ideal for narrow median in construction zones
    Low deflection, "fully pinned" option available
