Ultra - Temperature Patent SSSV Valve , Dynamic Sealing Structure Downhole Safety Valve

Subsurface Safety Valves(VCTSY Series Ultra-temperature, Patent for Invention), Working Temperature 350 ℃

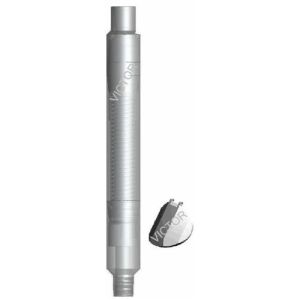

The VCTSY series ultra-temperature subsurface safety valves are tubing retrievable surface controlled subsurface safety valves. Different from the conventional subsurface safety valve, the body and the dynamic seal assembly of this product adopt the VCTSY patent design. A metal to metal seal is adopted without using any elastomer or high molecular materials.

The installation and application of this product is the same as that of the standard products. The safety valve is connected to the surface through the control line. Having been transmitted through the control line from surface, the pressure acts upon the metal sealing mechanism of the safety valve. Then, the specially designed drive mechanism pushes the flow tube to open the valve. Upon the bleeddown of the pressure from surface, the closure can be promptly achieved under the action of the spring.

Features

• Metal to metal seal
• Working temperature is 350 ℃.
• The metal dynamic sealing and the metal drive mechanism enable durable operation.
• Applicable for the high sanding and fouling environment
• The dynamic sealing structure can prevent the product from being deadly locked.
• Different materials for extremely-corrosive environments are available.
• This product can be matched with the standard nipple. And the FNP series nipple is recommended.
• Working pressure is 3000psi~10000psi.
• The technical indexes meet API14A specification.
• Self-equalizing and non-equalizing types are available.
• All types of threads are available.
• Please contact VCTSY for specific norm or technical parameters.
