    SCM Control Vertical Enameling Machine With Strong Anti - Interference Capacity

    Intelligent elongation tester for Vetrical enameling machine


    Performance Characteristics of Product
    ◆Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.3-2008
    ◆Used to test elongation (ductility) of copper wires covered with φ0.018-φ3.000mm enamel, silk or other insulation materials and other metal wires with tensile strength ≤2000N;
    ◆Application of SCM control allows for fast operation and strong anti-interference capacity;
    ◆Application of matured advanced human-computer interface would provide a hint for test operating procedure and display test result;
    ◆Clamps are designed according to characteristics of various wires to prevent samples from breaking at clamp jaws, easy to load samples and, after samples are compressed, enamel can be automatically broken;
    ◆While sample is broken, movable clamp would automatically stop moving, with error between displayed and actual elongation value less than 1%;
    ◆All test data can be automatically transmitted to upper computer, and be saved and analyzed by DMS-15 quality inspection data management system for enameled winding wire.

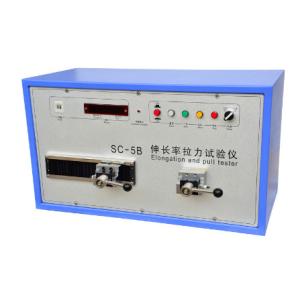

    Optional Model: SC-5 Elongation Tester


    Major Technical Parameters

    Start distance between two clamps200±0.5mm
    Stretching speed of sample300±60mm/min
    Maximum elongation testing range ( displacement distance of movable clamp)≥80% (≥160mm)
    Display of elongationLCD display, display accuracy of 0.1%
    Input powerAC220V±10% 50Hz
    Consumed power≤200W
    Overall dimensionsL×W×H 640×420×410mm
    Weight45kg
