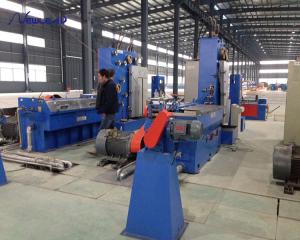

    Automatic Down Coiler Intermediate Wire Drawing Machine With Online Annealer

    Ask Lasest Price
    Brand Name : RBO
    Certification : CE
    Price : Negotiation | 1 Unit/Units copper wire drawing machine (Min. Order)
    Supply Ability : 5 sets in 30 days
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Automatic Down Coiler Intermediate Wire Drawing Machine With Online Annealer


    Automatic Down Coiler for 11DT Large and intermediate wire drawing machine with online annealer


    Design:

    • coiling principle: the flying pulley rotating around the fixed coiling capstanwinds the wire on the coiling capstan from where the wire is dropped into the wire container (barrel)

    • suitable for use with barrels, stems and cardboard barrels

      Increase in quality:

    rosette pattern laying guaranteesoptimum wire positioning and trouble- free downstream processing even after long hauls

    Increase in productivity:

    • down coiler for non-stop inline operation with wire production lines

    • fully automatic barrel change

    • wire positioning device for changing thewire safely

      Energy and cost efficiency:

      • maintenance-free three phase AC motor

    Options:

    safe fine wire positioning into thebarrel via adjustable falling height

    vibration device for high fillingweights

    machine

    11DST

    inlet diameter(mm)

    Φ3.5-3.0

    outlet diameter(mm)

    Φ0.8-φ2.76

    drawing line speed(MPM)

    900

    drawing dies No./Max.

    11

    slip ratio of m/c

    19.5%

    fix speed capstan slip ratio

    16.5%

    capstan

    tungsten

    capstan dia.(max.)(mm)

    Φ280

    fix speed capstan dia.(mm)

    φ 260

    frame

    weld,two conjunctions

    main motor

    55KW,ACmotor

    spooler motor

    15KW AC motor

    revise system

    PID synchronous spooler

    power control

    AC motor inverter control

    transmission type

    gear

    Payoff method

    over head

    traversing unit

    decelerate motor

    tension control

    pneumatic balance by swing arm

    lubrication system of wire drawing

    all immerse type

    suitable diameter of apool (mm)

    PND630

    capacity for wire receiving (kg)

    200-500

    power source

    380V

    brake

    pneumatic
