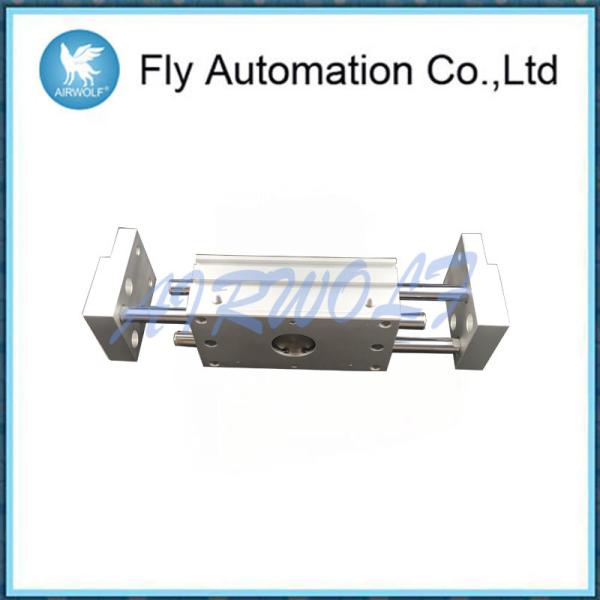

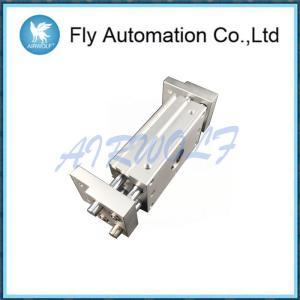

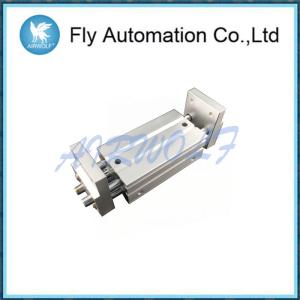

Aluminum Alloy Smc Pneumatic Cylinder Nickel Plated Mhl2-25d1 Mhl2-40d2

MHL2-25D1 MHL2-40D2 Aluminum alloy SMC Nickel plated Pneumatic cylinders

Advantage
1.One unit can handle workpieces withvarious diameters.
2.A large amount of gripping force isprovided through the use of adouble piston mechanism, whilemaintaining a compact design.
3.Double-end type oil-impregnatedresin bearings with a metal backingare used for all shafts.
4.Built-in dust-protection mechanismA high degree of freedom formounting
5.Auto switch mountable

How to Mount the Attachment to the Finger
(1) Make sure that the piston rod is retracted so as not to apply undue strain on the piston rod whilean attachment is being mounted to the finger.
(2) Do not scratch or dent the sliding portion of the piston rod. Damage to the bearings or sealsmay cause air leaks or faulty operation.
(3) Refer to the table below for the proper tightening torque on the bolt used for securing theattachment to the finger.

Effective Gripping Force
Indication of effective gripping force.The gripping force shown in the tablesrepresents the gripping force of onefinger when all fingers and attachmentsare in contact with the work.F = one finger thrust.

Gripping Point
The workpiece gripping point distance should be within the grippingforce ranges given for each pressure in the effective gripping forcegraphs below.

Auto Switch Mounting Brackets: Precautions
When auto switch is set on the mounting side as shown below, allow atleast 2 mm run off space on mounting plate since the auto switch isprotruded from the gripper edge.
Warning
If a workpiece is hooked onto the attachment, make sure that excessive impact willnot be created at the start and the end of the movement.

Typical Applications
Printing (Tension Control)
Semiconductor (spot welding machine, chip grinding)
Automation Control
Robot

Model

Specifications

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.

Products shopping guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.
