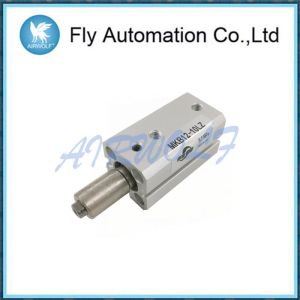

MKB12-10LZ MKB50-50LZ Double acting Proof pressure 1.5Mpa Rubber
bumper Air cylinders
With Magnetic Field Resistant Auto SwitchD-P3DWA
1.If welding cables or welding gun electrodes are in the vicinity
of thecylinder, the magnets in the cylinder could be affected by
the exter-nal magnetic fields. (Please contact SMC if the welding
amperage exceeds 1 60OO A.) If the source of strong magnetism comes
in con-tact with the cylinder with an auto switch, make sure to
install thecylinder away from the source of the magnetism.
2.If the cylinder is to be used in an environment in which spatter
willcome in direct contact with the lead wires, cover the lead
wires witha protective tube. For the protective tube, use a tube
l.D. o7 ormore, which excels in heat resistance and flexibility.
Auto Switch Mounting Bracket/Parts No.
1.DInsert the nut into the auto switch mounting slot on the
cylinder tube, andplace it in the roughly estimated
settingposition.
2.Engage the ridge on the auto switch mounting arm with the recess
in the cyl-inder tube rail, and slide it to the posi-tion of the
nut.
3.Gently screw the auto switch mounting screw into the thread of
the auto switchmounting nut through the mounting holeon the auto
switch mounting arm.
Caution
When a Magnetic Body Surrounds theCylinder
When a magnetic body surrounds the cylinder as shown in the fig-ure
below (including when the magnetic body is only on one side ofthe
cylinder), the movement of the auto switch may become un-stable.
Typical Applications
Printing (Tension Control)
Semiconductor (spot welding machine, chip grinding)
Automation Control
Robot
Specifications
| Bore size (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 |
| Action | Double acting |
| Rotary angle | 90° ±10° |
| Rotary direction | Clockwise, Counterclockwise |
| Rotary stroke (mm) | 7.5 | 9.5 | 15 | 19 |
| Clamp stroke (mm) | 10, 20, 30 | 10, 20, 30, 50 |
| Theoretical clamp force (N) | 40 | 75 | 100 | 185 | 300 | 525 | 825 | 1400 |
| Fluid | Air |
| Proof pressure | 1.5 MPa |
| Operating pressure range | 0.1 to 1 MPa | 0.1 to
0.6 MPa |
| Ambient and fluid temperature | Without auto switch: –10 to 70°C (No freezing)
With auto switch: –10 to 60°C (No freezing) |
| Lubrication | Non-lube |
| Piping port size | M5 x 0.8 | Rc1/8, NPT1/8
G1/8 | Rc1/4, NPT1/4
G1/4 |
| Mounting | Through-hole/Both ends tapped common, Head flange |
| Cushion | Rubber bumper |
| Stroke length tolerance | +0.6
–0.4 |
| Piston speed Note 5) | 50 to 200 mm/s |
| Non-rotating accuracy (Clamp part) | ±1.4° | ±1.2° | ±0.9° | ±0.7° |
Theoretical Output
| Theoretical Output | | | | | | | |
Bore size
(mm) | Rod size
(mm) | Operating
direction | Piston area
(cm2) | Operating pressure (MPa) |
| 0.3 | 0.5 | 0.7 | 1.0 |
| 12 | 6 | IN | 0.8 | 25 | 42 | 59 | 85 |
| OUT | 1.1 | 34 | 57 | 79 | 113 |
| 16 | 8 | IN | 1.5 | 45 | 75 | 106 | 151 |
| OUT | 2 | 60 | 101 | 141 | 201 |
| 20 | 12 | IN | 2 | 60 | 101 | 141 | 201 |
| OUT | 3.1 | 94 | 157 | 220 | 314 |
| 25 | 12 | IN | 3.8 | 113 | 189 | 264 | 378 |
| OUT | 4.9 | 147 | 245 | 344 | 491 |
| 32 | 16 | IN | 6 | 181 | 302 | 422 | 603 |
| OUT | 8 | 241 | 402 | 563 | 804 |
| 40 | 16 | IN | 10.6 | 317 | 528 | 739 | 1056 |
| OUT | 12.6 | 377 | 628 | 880 | 1257 |
| 50 | 20 | IN | 16.5 | 495 | 825 | 1155 | 1649 |
| OUT | 19.6 | 589 | 982 | 1374 | 1963 |
| 63 | 20 | IN | 28 | 841 | 1402 | —— | —— |
| OUT | 31.2 | 935 | 1559 | —— | —— |
Construction
Component Parts
Delivery
1. If the products we have in store, we will send it out ASAP after
payment.
2. If the products which were customized, we will complete the
production within a specified period of time, and send it out the
first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex,
TNL will be normal ways, If you require use of a courier, we can do
it.
4. Also we can send by your delivery acount if you want.
Products shopping guide
For example: you want to purchase a batch of cylinders but you
don't know which type you are really want, so you can tell me all
your requirement and I'll recommend to you.
