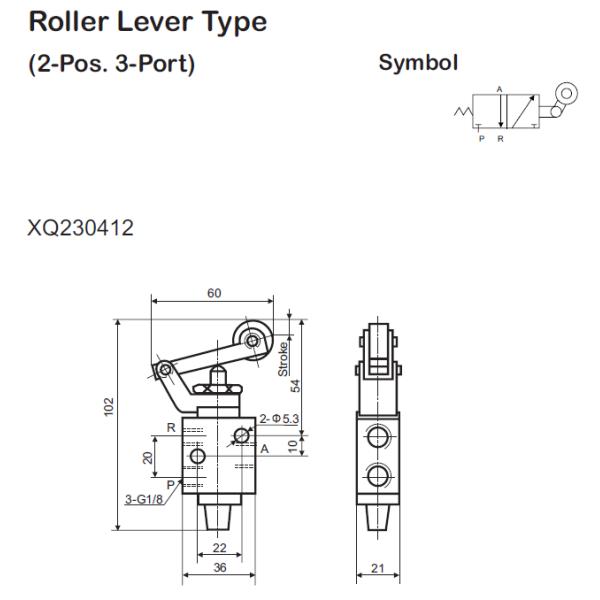

XQ230412 3/2 Way 1/8 Inch XQ Series Roller Lever Pneumatic
Stainless Steel Mechanical Valve
2 Position 3,5 - Port Mechanical Valve
XQ Series
Mechanical valves usually use the externa force from cams or rams
to change the fluid flowing directions.
When the external forces disappear the valves reset automatically.
There are several control types: plunger, roller plunger, roller
lever and one way roller lever, 2-Pos. 3-Port and 2-Pos. 5-Port.
The P port and R port of a 2-Pos. 3-Port valve can be exchanged so
as to change the valve from normally closed to normally open.
When a mechanical valve is installed, the moving direction of the
ram should be in α angle against the valve and the plunger should
be pressed down a S distance(the direction-changed stroke) as shown
in diagram(XQ230410).
Specification
| Model | Type | Port size | Nominal dia.
mm | Operating force | Operating
pressure | Fluid
temperature | Ambient
temperature | Service life |
| XQ230410 | 3/2 | G1/8 | 4 | 26N | 0~1.0MPa | -10~+60℃ | 5~60℃ | 10
million times |
| XQ230610 | G1/4 | 6 | 35N |
| XQ250410 | 5/2 | G1/8 | 4 | 30N |
| XQ250610 | G1/4 | 6 | 40N |
| XQ230411 | 3/2 | G1/8 | 4 | 26N |
| XQ230611 | G1/4 | 6 | 35N |
| XQ250411 | 5/2 | G1/8 | 4 | 30N |
| XQ250611 | G1/4 | 6 | 40N |
| XQ230412 | 3/2 | G1/8 | 4 | 16N |
| XQ230612 | G1/4 | 6 | 24N |
| XQ250412 | 5/2 | G1/8 | 4 | 19N |
| XQ250612 | G1/4 | 6 | 27N |
| XQ230413 | 3/2 | G1/8 | 4 | 17.8N |
| XQ230613 | G1/4 | 6 | 20N |
| XQ250413 | 5/2 | G1/8 | 4 | 21N |
| XQ250613 | G1/4 | 6 | 23N |
Pictures details
Delivery
1. If the products we have in store, we will send it out ASAP after
payment.
2. If the products which were customized, we will complete the
production within a specified period of time, and send it out the
first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex,
TNL will be normal ways, If you require use of a courier, we can do
it.
4. Also we can send by your delivery acount if you want.
Competitive Advantage
| Our product features | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
After-sale Service
We can provide a series of after-sale service, such as product
introduction, mounting, debugging, technical support and so on.
