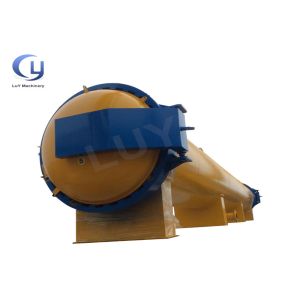

Can Be Customized Creosote Treatment Plant Passed Government Test
With Filter System
Ⅰ Product description
This creosote treatment plant equipped with heating system, the
heat source can be provided by a thermal oil furnace or a steam
boiler. If the customer's company does not have a boiler, we can
also provide it for you.
Creosote wood pole treatment plant is mainly used to treat creosote
wooden pole, and is suitable for non-water soluble pharmaceuticals
such as creosote oil.
Ⅱ Main Model
| Type | Effective Diameter(mm) | Effective Length(mm) | Total capacity(cubic meter) | Effective treat capacity(cubic meter) |
| DC1500*12000 | 1500 | 12000 | 21.1 | 14.1 |
| DC1500*8000 | 1500 | 8000 | 14.1 | 9.4 |
| DC2000*14000 | 2000 | 14000 | 43.9 | 29.3 |
| DC2200*16000 | 2200 | 16000 | 60.8 | 40.5 |
| DC2500*26000 | 2500 | 26000 | 127.5 | 85.0 |
| DC1800*8000 | 1800 | 8000 | 20.3 | 13.5 |
| DC1800*10500 | 1800 | 10500 | 26.7 | 17.8 |
| DC1800*12000 | 1800 | 12000 | 30.5 | 20.3 |
Note: The maximum diameter which we can customize is 4.5m, the length
can be customized according to users' needs.If the above model is
not available, please tell us the diameter and length of the
equipment you need. We can customize it for you.
Ⅲ Technical parameters
Material: Q345R carbon steel(high pressure vessel special material
Safety ways: Double safety interlock ,tank with three safety
interlock
Open door ways: Manual quickly open door
Design temperature(℃): 150℃
Design pressure(Mpa): 1.58Mpa
Working pressure:1.0-1.4mpa
Ⅳ Technology Process
1. Initial vacuum ,before add creosote ,begin initial vacuum,the
purpose is to extract air cell ,reduce the resistance when the
creosote entry into the wood/wood poles,in order to immerse better
wood/wood poles The vacuum degree is 79.8-90kpa ,the time is up to
product requirement.
2. Add creosote . In the vacuum state ,we add creosote ,and there
is liquid level with storage tank ,after fill of the creosote oil
.stop the valve.
3. heat stage ,open open button to heat creosote oil to dilute it.
4. Increase pressure : increase pressure into 1.0-1.4Mpa ,then keep
pressure.
5. Discharge pressure and discharge creosote ,open the valve ,let
the creosote oil come back to storage tank ,when it get liquid
gauge level min limited , stop the valve.
6. Final vacuum ,open the vacuum system ,to extract the rest
creosote oil ,reduce dropping liquid
7. take out of wood/wood poles.
Ⅴ Advantages
1. The material is Q345R steel which has good physical
properties.Material is we purchased from famous manufacturer,
quality is absolutely guaranteed.
2. The galvanized sheets which will not rust in ten years welded
and fixed around the equipment and built in insulation cotton to
ensure make full use of heat energy. The thickness of the
insulation cotton is 50mm. Reduce heat loss and save energy and
reduce processing costs.
3. Steam boiler as a heat source, heat pipes distribution in the
left, right and bottom of the equipment, to ensure uniform heating
4. Our equipment using automatic angle seat valve, it can
automatically make the equipment to maintain the vacuum. So the
vacuum degree is better than other equipments.
