Stainless Steel Panel Mount Kiosk Laptop Mechanical Keyboard IP65 USB Connection Plug

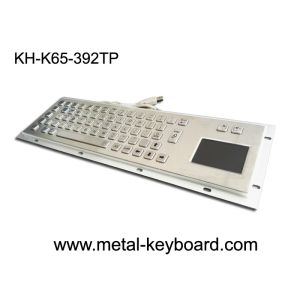

Waterproof Industrial Stainless Steel Panel mount Kiosk Keyboard with touchpad

DIMENSIONS: 392 x110 mm (Front panel)

MAIN FEATURES:

• Imposing stainless steel design, guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
• Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
• An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
• Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
• Complete electronic modules including controller in close consultation with our customers are available.
• PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.

Material :

• Front panel & Keys: super quality SUS304 Brushed stainless steel

• Back Plate:3.0mm thickness brushed & silver oxidized aluminum

• Touchpad: 1.3 mm thickness Synaptics Touch Pad

MAIN APPLICATION:

• This Industrial Stainless Steel Panel mount Kiosk Keyboard is mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas.

MECHANICAL DATA

• Key top style: Protuberant rectangular keys, laser engraved & etched graphics & raised braille on keys are available

• Stroke travel: 2.0mm

• Switch life: more than 1 million of per key

• It is compatible to WINDOWS98/ME/2000/2003/XP/Vista/ Linux, Unix, Mac OSX

• Customized layout is available

• N.W.:1.4 KGs

ELECTRICAL DATA

• Supply Voltage:5.0V DC±5%

• Current Rating: appr. 30mA

• EMC Standard: It is compliance with the council EMC directive 2004/108/EC

• EN55022: 2006+A2:2010

• EN55024: 1998+A1:2001+A2:2003

• Lifespan > 5 years

ENVIRONMENTAL ADAPTABILITY

• Operating temperature:-20°C to +60°C

• Storage temperature: -30°C to +70°C

• Operating RH: 20-95%

• Atmospheric pressure: 60-106Kpa.

RELIABILITY

• Compliant RoHS , CE and FCC

• Protection Level: IP65(front panel)

• Vandal resistant: IK10

• Key Lifespan >10 million actuations

• MTBF >5,0000H

• MTTR <30min
