BN-H05 PCBN Inserts CNGA/CCGW Continuous Turning Gears 20CrMnTi
Materials
1. About BN-H05 PCBN Inserts
| Insert Materials | Coating | Suited Materials | Machining Type | Typical Application | Insert Image |

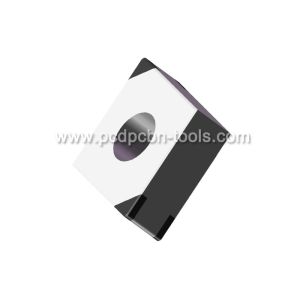

| BN-H05 | Without Coating | Hardened Steel | Finishing | Gears,Gear Shaft, Bearings |  |
BN-H05 C25 | With Coating |  |
2. BN-H05 PCBN Inserts Cutting Condition
| Insert Materials | Coating | CBN Content | Binder | Granularity (μm) | Hardness (HV) | Machining Type |
| BN-H05 | Without | 45% | TiN | ≤1 | 2700~2800 | Continuous Turning |
BN-H05 C25 | With |
3.Common Models of PCBN Inserts CCGW and CNGA
CCGW1204 80° Rhombic PCBN Inserts
|
| Type | Dimension | Standard Chamfer | Grades |
| L(mm) | φI.C(mm) | S(mm) | φd(mm) | r(mm) | BN-H05 | BN-H05 C25 |
| CCGW060202-2S/4S | 6 | 6.35 | 2.38 | 2.8 | 0.2 | S01015 S01020 S01025 S02020 S02025 | ● | ◎ |
| CCGW060204-2S/4S | 6 | 6.35 | 2.38 | 2.8 | 0.4 | ● | ◎ |
| CCGW060208-2S/4S | 6 | 6.35 | 2.38 | 2.8 | 0.8 | ● | ◎ |
| CCGW09T302-2S/4S | 9 | 9.525 | 3.97 | 4.4 | 0.2 | ● | ◎ |
| CCGW09T304-2S/4S | 9 | 9.525 | 3.97 | 4.4 | 0.4 | ● | ◎ |
| CCGW09T308-2S/4S | 9 | 9.525 | 3.97 | 4.4 | 0.8 | ● | ◎ |
| CCGW120404-2S/4S | 12 | 12.7 | 4.76 | 5.5 | 0.4 | ◎ | ◎ |
| CCGW120408-2S/4S | 12 | 12.7 | 4.76 | 5.5 | 0.8 | ◎ | ◎ |
| CCGW120412-2S/4S | 12 | 12.7 | 4.76 | 5.5 | 1.2 | ◎ | ◎ |
CNGA1204 80° Rhombic PCBN Inserts
|
| Type | Dimension | Standard Chamfer | Grades |
| L(mm) | φI.C(mm) | S(mm) | φd(mm) | r(mm) | BN-H10 | BN-H10 C25 |
| CNGA120404-2S/4S | 12 | 12.7 | 4.76 | 5.16 | 0.4 | S01015 S01020 S01025 S02020 S02025 | ● | ◎ |
| CNGA120408-2S/4S | 12 | 12.7 | 4.76 | 5.16 | 0.8 | ● | ◎ |
| CNGA120412-2S/4S | 12 | 12.7 | 4.76 | 5.16 | 1.2 | ● | ◎ |
| CNGA120416-2S/4S | 12 | 12.7 | 4.76 | 5.16 | 1.6 | ● | ◎ |
All above model CNGA and CCGW, both can offer 4 cutting edges, all
depends the customers' requirements.
4. Typical Application Case with BN-H05 PCBN Inserts
| BN-H05 CNGA120408 PCBN Inserts Continuous turning 20CrMnTi Gears |
Machining Condition:Continuous turning gears Material: 20CrMnTi Gears, HRC58-62 Selected Insert: BN-H05 CNGA120408 Cutting Condition: ap=0.1mm, Fr=0.1mm/r, Vc=180m/min, Dry Cutting |  |
Insert material | Roughness | Life Time |
| Halnn BN-H05 PCBN Inserts | ≤ Ra0.8 | 800 pcs |
Other Europe PCBN Inserts | Ra1.0 | 550 pcs |
From above application, we can see that for continuous turning
process , with Halnn BN-H05 PCBN Inserts, the tool life improved
30%. And the roughness also improved.
5. Other Application of BN-H05 PCBN Inserts
BN-H05 PCBN Inserts are researched specific for machining hardened
steel, such as bearing steel, gear steel, high strength steel, it
can be used for only continuous turning , normally we used for
machining hardened steel component, such as gears, bearing. When
the inner bore doesn't have keyway, it will only belong to
continuous turning condition. At this time, We can choose BN-H05
PCBN inserts. The following is some other typical application for
machining hardened steel with PCBN Inserts:
