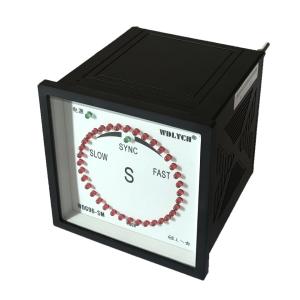

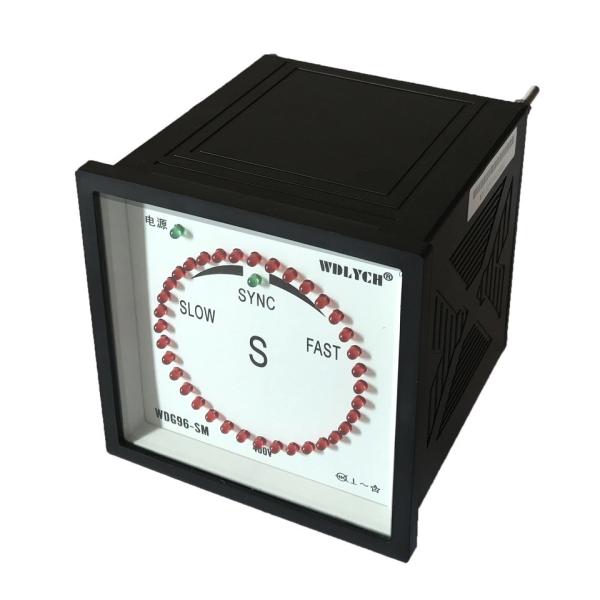

6714+ Digital Generator Electronic Synchroscope Meter With Relay Alarm

6714+ Digital Generator Electronic Synchroscope Meter With Relay Alarm

1. Product Description:

Synchroscope meter with parallel is the instruments which integrate synchronized indicating and pulse transferring, when the moment of phase difference come to "0" between power generator and network, Sync LED is on, to fulfill power generator and system synchronized automatically.

2. Basic Data:

	Display Mode	Model No	Dimension	Cut out	Voltage	Connection Way
	LED Display	WDG96-SM	96x96-108	92x92	110v	Direct conneciton or By PT
		WDG96-S			220v
		WDG72-SM	72x72-108	68x68	380v
		WDG72-S			440v

3. Technical Parameters:

4. Technical Performance:

1). Fluctuation of voltage ±10% rated value, frequency difference between power generator and network less than 2Hz, Sync meter works;

2). Frequency difference closedown range: 0.05-0.5Hz;

3). Lead time of closing demand: 50ms-500ms;

4). Power supply: Network and generato systm: 100V, 50Hz;

5). Power consumption: ≤5VA;

6). Capacity of output contact: AC380/5A or DC280V/10;

7). Environment temperature: 0-55℃, relativity humidity: 95%, with vibration, oil & salt mist during operating.

5. Ordering Code

6. Certifications:

Wei Dian Union(Hubei) Technology Co.,Ltd. Located in Optics Valley of China--- Wuhan East lake high-tech development Zone, established in 2008, with factory area of 5000² and 120 employees, We are the member of National Standardization Committee for Electric Meters & Instruments.

Wei Dian Union are specialized in manufacturing electric measuring instrument and current transformer with a concentration in R&D, Production, sales & after sales, which guarantee us strictly comply with standard of GB/T22264-2008 & GB/T7676-98 to operate. Now , we have ISO9001-2008 certificate, digital meter have passed CE, while marine meter approved by China Classification Society (CCS).

Our products are widely used in transmission & distribution power system of shipping, aviation, railway, oil, chemistry, metallurgy, electric, power station, intelligent building, industrial instrument, etc.

Weidian Union has a great team to service domestic & overseas customers. With the help of university, our technical department are able to share with the newest techonology to promote upgrade of products. Our sales team divided into domestic and international sales, which help customers on pre-selling, sales and after service, make sure to satisfy diversity demands from customers, the team always ready in 7*24 hours. Producing & QC department: Over 3 years' skilled workers,to fulfill the producing, assembling and adjusting works.

With the principle of “Pursuing for precision and perfection, unifying thinking and behavior ”, continuous exploration and innovation to meet customers’ demands. Reliable quality and good after-service receive more and more trust from users.
