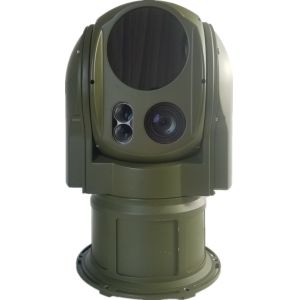

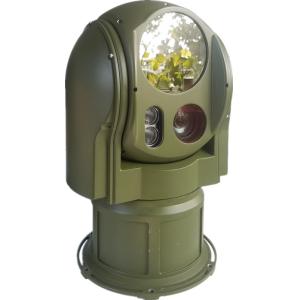

    3 Channel Thermal Imaging Surveillance Camera Weatherproof With High Definition

    Ask Lasest Price
    Brand Name : JOHO
    Model Number : JHS209-S80
    Certification : CE, ISO9001:2000
    Price : negotiation
    Payment Terms : T/T, L/C,, Western Union, MoneyGram
    Supply Ability : 50Sets/Year
    Delivery Time : negotiation
    • Product Details
    • Company Profile

    3 Channel Thermal Imaging Surveillance Camera Weatherproof With High Definition


    Thermal Imaging Surveillance System 3 Channel Security Camera System


    Capable of day& night monitoring, target searching and tracking, this ship-borne EO/IR system is widely applied for reconnaissance and surveillance, search and rescue, law enforcement, public security on patrolling boat, maritime surveillance ship, fishing boat etc.


    Features
    Two axis image stabilization with high precision gyro and servo
    Fast searching, detection, recognition and identification specific target
    Real-time output IR and TV image
    Laser ranging
    Light weight, compact structure; strong adaptability & low consumption.
    Video tracking, manu/auto locking and tracking


    Technical Specification


    THERMAL CAMERA
    DetectorUncooled FPA
    Pixel640*512
    Spectral band8μm~14μm
    Pixel17mm x 17mm
    Focal length80mm
    DAY LIGHT CAMERA
    Detector1/2.8" CMOS
    Focal length4.3~129mm, 30x
    Resolution1920×1080
    LASER RANGE FINDER
    Wavelength1.06μm
    Ranging300m~5km (visibility 10km, 3m*3m target)
    Measurement accuracy≤ ± 5m
    SERVO
    Stabilization accuracy≤0.5mrad(1σ)
    Turret direction rangeazimuth:360° continuous; elevation:+60°~-60°
    TURRET MAXIMUM ANGLE SPEED
    Azimuth≥30°/s
    Pitch≥30°/s
    ENVIRONMENTAL
    Operating temperature range-20℃ ~ +40℃
    Storage temperature range-30℃ ~ +50℃
    Tracking
    Tracking speed≥2.5FOV/S
    Min tracking contrast ratio5%
    Dynamic tracking accuracysuperior to 1mrad
    POWER
    Power SupplyDC 24V
    PHYSICAL
    Dimension Turret≤ Φ220× 400mm
    Turret Weight≤ 10kg
