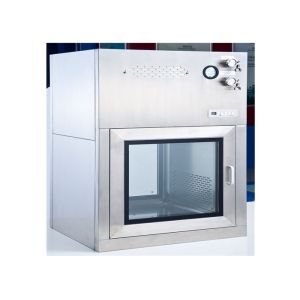

    Dynamic Cleanroom Pass Through Box With Electromagnetic Interlock

    Ask Lasest Price
    Brand Name : KELING
    Model Number : KEL-DPB Series
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Dynamic Cleanroom Pass Through Box With Electromagnetic Interlock

    Pharmaceutical GMP Workshop Customized SUS201 Dynamic Cleanroom Pass Thru Box


    CUSTOMIZED DESIGN IS AVAILABLE


    Product features

    1.Material:SS 304 Or SS 201

    2.On both sides of the gate has a mechanical interlock or electrical interlock device, make sure not in an open position at the same time on both sides of the door.

    3.The outlet of the wind speed up to more than 20 s.

    4.Adopts hepa filter with separators, the filtration efficiency is: 99.99%, to ensure that the level of purification.

    5.Using EVA sealing material, sealing performance is high.

    6.Imported electronic components, reliable in performance.


    Products Parameter:

    MODELKEL-DPB500KEL-DPB600KEL-DPB700

    External size (mm)

    (W*D*H)

    700x570x1050mm800x670x1150mm900x770x1250mm

    Work zone (mm)

    (W*D*H)

    500x500x500mm600x600x600mm700x700x700mm
    Purification rankClass 100

    Material

    (Option)

    1: Entirety Sus304.(T=1.2/1.5mm)

    2: Entirety sus201. (T=1.2/1.5mm)

    3:External is steel with power coated, Internal is SUS304(T=1.2/1.5mm)

    4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)

    Control system

    1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem.

    2: Pass Box inside bottom corner is round shape without any dust

    accumulation .

    3: Double layer vacuum glass have very good appearance

    4: Software computer interlocking door with long time using life

    5: Air speed is 0.45m/s adjustable

    UV light1 PCS
    Power supply220v/50HZ
    packing size (mm)800x870x1300mm1000x870x1400mm1100x970x1500mm
    Packing materialStandard Export Poly wood Packing(Fumigant free material)

    Wall-Mounted 3 Doors Pass-Thrus

    In case you need to transfer items between 3 different rooms using only one pass thru.

    Standard Features
    Formed and stitch-welded type 304 #4 finish stainless steel construction
    Stainless steel continuous flush-mount hinges
    Clear tempered safety glass viewing windows
    Closed-cell PVC foam door gaskets
    Type 316 stainless steel lever compression door latches
    Magnetic Interlock
    Stainless Steel Mounting Frame


    Features
    Formed and stitch-welded type 304 #4 finish stainless steel construction
    Stainless steel continuous flush-mount hinges
    Clear tempered safety glass viewing windows
    Closed-cell PVC foam door gaskets
    Type 316 stainless steel lever compression door latches
    Magnetic Interlock
    Stainless Steel Mounting Frame

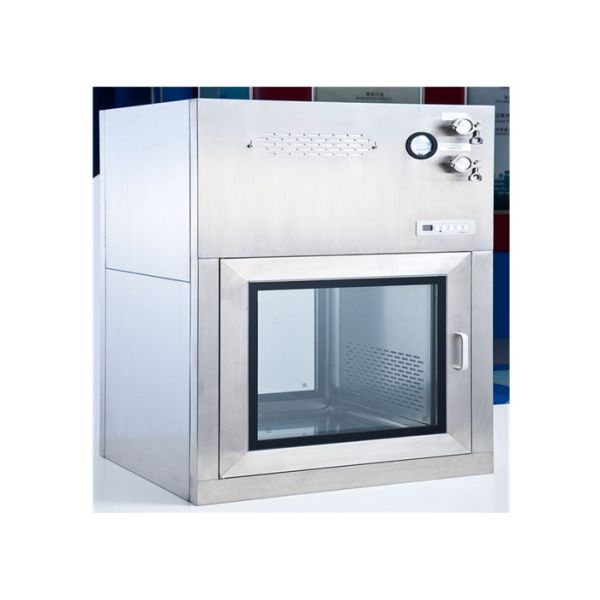

    Quality Dynamic Cleanroom Pass Through Box With Electromagnetic Interlock for sale
