    1.2 - 33 UH Surface Mount Power Inductors For Power Supplies 4.0 * 4.0 * 1.2mm

    Ask Lasest Price
    Brand Name : Shareway
    Model Number : MOX-SLI-4012
    Certification : RoHS,CE,UL
    Price : Supportive
    Payment Terms : TT,Paypal,West Union
    Supply Ability : 1kk-pcs/month
    Delivery Time : Stock Or 3 weeks
    • Product Details
    • Company Profile

    1.2 - 33 UH Surface Mount Power Inductors For Power Supplies 4.0 * 4.0 * 1.2mm

    1.2-33uH SMD Power Inductor MOX-SLI-4012 for power supplies with RoHS


    Description:

    • Low cost.
    • Magnetically shielded construction.
    • Ultra low profile package.
    • Operating temperature: -40°C to +105°C.
    • Excellent solderability & resistance to soldering heat.
    • RoHS compliant.

    Part NumberInductance
    (μH)
    Test
    Frequency
    RDC ( mΩ )
    ±20%
    IDC1 (A)IDC2 (A)
    MOX-SLI-4012-1R2N1.2±30%0.1V/100KHz532.202.30
    MOX-SLI-4012-1R5N1.5±30%0.1V/100KHz641.801.90
    MOX-SLI-4012-2R2N2.2±30%0.1V/100KHz821.601.70
    MOX-SLI-4012-3R3N3.3±30%0.1V/100KHz951.501.52
    MOX-SLI-4012-4R7M4.7±20%0.1V/100KHz1351.201.30
    MOX-SLI-4012-6R8M6.8±20%0.1V/100KHz1621.101.24
    MOX-SLI-4012-8R2M8.2±20%0.1V/100KHz2051.001.08
    MOX-SLI-4012-100M10±20%0.1V/100KHz2500.850.96
    MOX-SLI-4012-120M12±20%0.1V/100KHz2900.750.92
    MOX-SLI-4012-150M15±30%0.1V/100KHz3750.720.84
    MOX-SLI-4012-180M18±20%0.1V/100KHz4400.650.71
    MOX-SLI-4012-220M22±20%0.1V/100KHz6300.620.58
    MOX-SLI-4012-270M27±20%0.1V/100KHz7400.500.50
    MOX-SLI-4012-330M33±20%0.1V/100KHz8350.450.48

    1.2-33uH SMD Power Inductor MOX-SLI-4012 for power supplies with RoHS

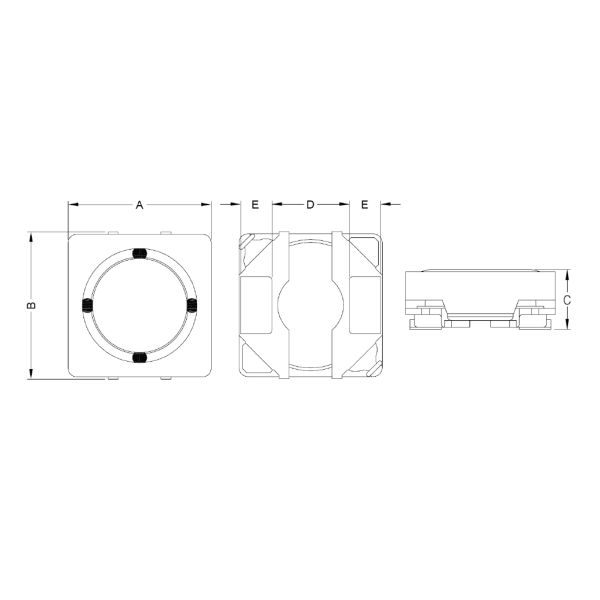

    Dimensions:

    A:4.0mm

    B:4.0mm

    C:1.2mm

    D:2.1mm

    E:0.9mm

    Quality 1.2 - 33 UH Surface Mount Power Inductors For Power Supplies 4.0 * 4.0 * 1.2mm for sale
