Female Thread Connection Solenoid Stem With Circular Seat/Little
Core
Item characteristic
1.Two way two way normally closed solenoid stem.With Two
ports,though as Two way two way normally closed solenoid stem,there
is a female thread connection
2.Female thread connection different from the male thread
connection and flange connection
3.Smooth and beautiful appearance because our high quality
material:SS304 and washing process
SS304:304 stainless steel is a common stainless steel material,
7.93 g/cm 3 density, also known as 18/8 stainless steel industry.
High temperature resistance , with good processing performance,
high toughness characteristics, widely used in industrial and
furniture decoration industry and food and medical industry.
Washinng process instruction:
Wash by oil and other organic solvent |
| Wash by pure water |
4.External spring to provide spring forces which hold guide tube
and seal the solenoid coil after assembling
5.With Air exhausted vent to push the gas out when
de-energized.It's play a role in keeping safety and high precision
6.Embed NBR seal the media of liquid whaterver acid/alkaline media
or organic solvent
NBR:NBR has good resistance to mineral oils, vegetable oils,
benzene/petrol, ordinary diluted acids and alkaline.
Service Advantages
| Great quality guarantee | With more than 10 years experience in manufacturing pneumatic series product |
| Quick Lead time | Support all tansportation way |
| Well after-sale service | Advanded technology support |
| Wide Product catalog on sale | Professional customer service |
Solenoid stem advantages
| Lower electrical power level. |
Long service life | Fast and safe switching | High reliability |
| Good medium compatibility of the materials used | Low control power | Compact design | Fast operation |
| Excellent for very large flow. | Pressure assists valve operation. | Needs minimum pressure differential | More economical for higher flow values |
Detail information of BAPC211030036
| Brand | BRANDO |
| NO. | BAPC211030036 |
| Voltage | AC/DC |
| Tube OD | 11.0mm |
| Tube height | 30.0mm |
| Item weight | 21.5g |
| Movable core height | 21.5mm |
| Depth | 17mm |
| Armature height | 30.9mm |
| Material | Stainless steel SS304 |
| Standard or no | Standard |
| Type | Two way two way normally closed |
| Seal material | NBR |
| Standard or no | Standard |
| Certificate | CE ISO |
| Saet type | Circular seat |

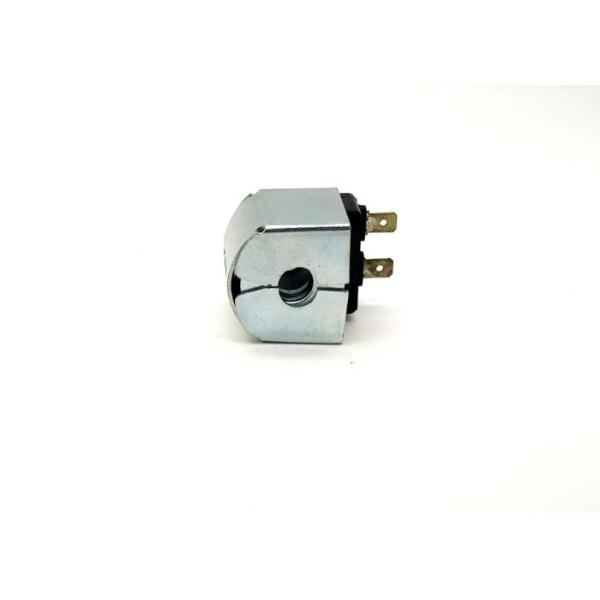

Solenoid coil image
Provide OEM Service with your drawing and sample
Professional chinese original manufacturer specialized in pneumatic
series products.If you are seeking Pneumatic Products.
Here we provide the best choose for you
