    On Site Non Destructive Testing Equipment Vibration Analyzer Balancer Vibration Frequency Meter Vibration Testers

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : HG-601A
    Certification : ISO CE
    Payment Terms : T/T, Western Union
    Supply Ability : 500
    • Product Details
    • Company Profile

    On Site Non Destructive Testing Equipment Vibration Analyzer Balancer Vibration Frequency Meter Vibration Testers

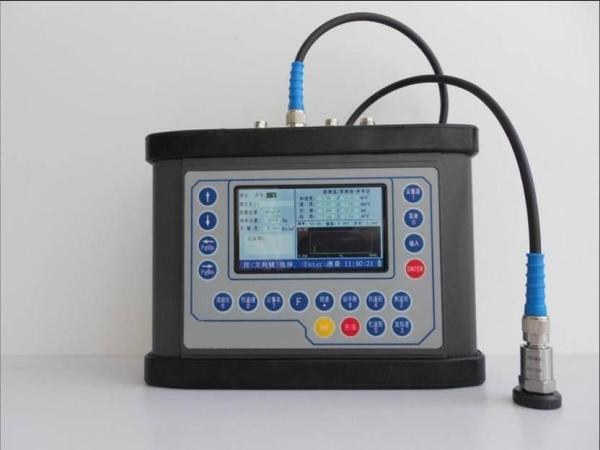

    On Site Data Collector Portable Vibration Analyzer Balancer HG601A Dual Channel
    Features:
    • 1 or 2 plane On-site Balancing
    • 50 sets storage of balancing data
    • Process clarified by vector graph
    • Trial weight estimation
    • Trial can be removed or remain
    • Balancing weight can be decomposed
    to 2 required positions
    • Rechargeable battery for more
    than 6.5 hours continuous operation
    • Dual-channel vibration Analyzer
    • 1600 lines FFT spectrum
    • Spectrum and time waveform display
    • Acceleration envelope demodulation
    Auto-range or manual-range for impulse vibration measurement
    Storage: 400 vibration value sets & 400 waveforms of 1600 samples
    HG3.0 software analysis spectrum(only HG-601A can connection)
    Chinese or English language operation, 4.3 inch Color display
    Specification:
    Rotation Speed: 120-30,000 r/min
    Input: Accelerometer & Voltage
    for velocity or displacement sensors
    Measure Acceleration, Velocity, Displacement, Voltage and Acceleration Envelope
    Balancing by the method of influence coefficient
    Vibration value accuracy 5%
    Operating Environment: -30°——95°
    Normal temperature sensor Environment:-35°——80°
    High temperature sensor Environment:-35°——130°
    Frequency response for vibration overall value & Spectrum: 0.5Hz-10kHz
    Hanning windowed Spectrum
    Measurement Range & Resolution
    Acceleration 250m/s2 0.1m/s2
    Velocity 200mm/s 0.1mm/s
    Displace 5000 μm 1 μm
    Envelope 25m/s2 0.1m/s2
    Laser tachometer
    Size: 210*130*40mm
    Weight: 950g(including battery)
    HG-601A/ HG603A Pack List
    Vibration Data Collector 1
    Accelerometer 2
    Magnetic Mount 1
    Steel Extension Probe 1
    Battery Charger 1
    Accelerometer Cable 3
    USB Communication Cable HG601A) 1
    Balancing Module 1
    Tacho/Trigger Sensor and cable 1
    Reflector Paper set 1
    Quick Start Guide 1
    HG software CD (HG601A) 1
    Certificates of HG-601A/HG-603A and sensors 3
    Carrying Case 1
    mount base stand for tacho sensor 1
