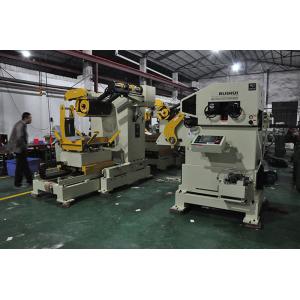

    Metal Punching Processing Press Feeding Equipment Automatic Stamping Peripheral

    Ask Lasest Price
    Brand Name : RUIHUI
    Certification : CE, ISO certification
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Metal Punching Processing Press Feeding Equipment Automatic Stamping Peripheral

    Metal punching processing, feeder feeding speed, automatic stamping peripheral equipment


    The PLC program sets the number of conversion pulses on the touch screen.

    The PLC calculates the number of pulses sent to the servo driver according to the set length. The number of set revolution pulses can be expressed by the following formula:

    The PLC output uses a floating point algorithm, and the input parameters must be in floating point format.
    The high-speed pulse output command mid-pulse setting must be BIN number, so finally through the FIXL, the instruction converts the calculated number of pulses into the B1N number format. The number of servo drive electronic gears is set to 5.

    Pulse number to actual length

    In order to let the operator better understand the working condition of the feeder, real-time display of the feeding length is very necessary.

    The method is to read the actual pulse number of the PLC, and the multi-faceted hand is converted into the actual length value and displayed on the touch screen. The actual number of pulses can be expressed by the following formula:

    Feed speed to pulse frequency

    feeder

    Feeding speed requirements are different for workpieces of different lengths; longer workpieces require higher feed speeds, otherwise they will conflict with other equipment.

    For shorter workpieces, a lower feed rate can be chosen to help protect the motor. Therefore, it is necessary to read the maximum speed from the touch screen multiplied by the set percentage, which is the feeder speed, and then convert it into a pulse frequency.

    Pulse frequency transfer rate

    While the feed length is displayed on the touch screen in real time, the display of the feed speed is also very necessary by reading the pulse frequency emitted by the PLC and dividing it by the maximum speed, which is the display percentage.


    Specifications:

    ModelMAC4-600FMAC4-800FMAC4-1000FMAC4-1300F
    Stock Width(mm)70~60070~80070~100070~1300
    Stock Thickness(mm)0.6~6.00.6~6.00.6~6.00.6~6.0
    Max.Coil Weight(kg)50005000700010000
    Max.Coil O.D.(mm)1400140014001400
    Coil I.D.(mm)508508508508
    Feed Length(mm)~500*~500*~500*~500*
    Max.Line Speed(m/min)16~2416~2416~2416~24
    Work Roll Number(piece)upper 6/lower 5upper 6/lower 5upper 6/lower 5upper 6/lower 5
    Feed Roll number(set)1111
    Main MotorAC7.5AC11.0AC11.0AC11.0
    Mandrel ExpansionHydrauilcHydrauilcHydrauilcHydrauilc
    Reel Motor(kw)2.22.23.77.5
    Power(v)3 Phase 220V/380V/50HZ
    Operating Air(Mpa)0.490.490.490.49


    Straightening Performance:

    ModelMAC4-600FMAC4-800FMAC4-1000FMAC4-1300F
    Stock Thickness
    (mm)
    0.8~2.360080010001300
    2.8933933
    3.2714714714
    4.0457457457457
    4.5361361361361
    5.0293293293293
    6.0203203203203


    Products:

    feeder

    feeder



    1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

    2. After-Sales service:We have an efficient team to meet 24*7 all day service.

    3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

    4. Engineers can provide service machinery overseas.
