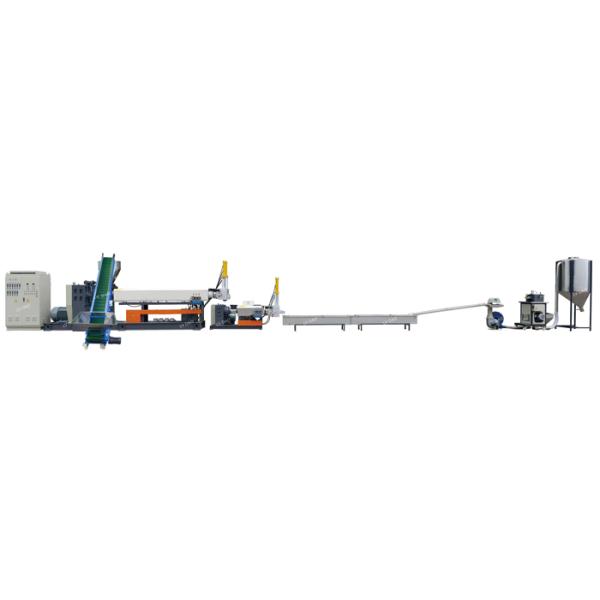

PA ABS double stage hard scrap pelletizing line output 220-250kg/h
power 45-55kw
Production descriptions:
1) It adopts the two-step structure to meet the double-layer filter
purpose.
The double stage hard scrap pelletizing line can effectively remove
the impurities from the recycling material and fully exhaust the
gas.
It can produce ample ,consolidated and fine luster granules.
2) Specially-designed screw and-as well as high power motor ensure
good mixture of material and high output.
3) The advantage of the double stage pelletizing line is better
melting and the material is more clean after two filtering from
screen changers.
4) Double stage hard scrap pelletizing line is mainly designed for
processing PE, PP rigid flake or waste film flakes. The advantage
of the double stage pelletizing line is better melting and the
material is more clean after two filtering from screen changers. It
is an ideal machine for the kinds of little bit dirty material. For
screw L/D varies according to the material condition, for example,
rigid material or film flakes.
Features:
1) The granulating crusher uses adjustable speed motor,pelleting
and discharging speed an extruding machine at the same .The unit is
easy to operate,with a high output,steady performance, and
favorable economic benefit.
2))Running in a high automatization and intellectualization,no
pollution
3) Machine run steadily, no maintenance.
4) It has a continuous service life of more than 12 hours.
This design of the equioment is advanced and resonable, in
addition,we provide specialized installation.The parts all produses
by equipment in our factory.
5) After plasticizing and extrusion, the particles can have high
density, nice surface, high output, stable extrusion.
It with noodle cutting type, not water-ring cutting.
6) Plastic granulating machine is a customized product. Each set is
customized according to the customer's raw materials, with
different configurations and different prices.
Specifications:
| Model | Screw dia.(mm) | Long dia.ratio(mm) | Output(kg/h) | Power(kw) | Screw rotate speed(r/min) |
| LDD-SJP-80-70 | φ80,φ70 | 25:1-10:1 | 70-100 | 18.5-22 | 73 |
| LDD-SJP-90-85 | φ90.φ85 | 25:1-10:1 | 90-120 | 22-30 | 73 |
| LDD-SJP-100-95 | φ100,φ95 | 25:1-10:1 | 120-150 | 30 | 73 |
| LDD-SJP-110-105 | φ110,φ105 | 25:1-10:1 | 150-180 | 30-37 | 73 |
| LDD-SJP-120-115 | φ120,φ115 | 25:1-10:1 | 200-220 | 45 | 73 |
| LDD-SJP-130-120 | φ130,φ120 | 25:1-10:1 | 220-250 | 45-55 | 73 |
| LDD-SJP-140-130 | φ140,φ130 | 25:1-10:1 | 250-300 | 55-75 | 73 |
| LDD-SJP-150-140 | φ150,φ140 | 25:1-10:1 | 300-450 | 75-90 | 73 |
Detail images:
Packaging & Delivery:
1. We can provide custom-made packaging.
2. Prompt deliver at the very day.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving
the product, please feel free to contact us. Problems would be
solved for you immediately.
5. Sophisticated and professional logistic agent.
Competitive advantages:
1. Since 1992, professional manufacturer of plastic recycling
machinie and pelletizing machine ;
2. The biggest manufacturer of plastic pelletizing machine in
zhejiang province .
3. 3000 pcs quatity of pelletizer in one year .300 pcs quantity of
recycling machine in one year.
4. Promise:We will provide technical support for all lifetime with
over 20 years experiences.
