Transparent Cover Automotive Light Relay For Peugeot , 12V 40A
Automotive Relay Universal Headlight Relay

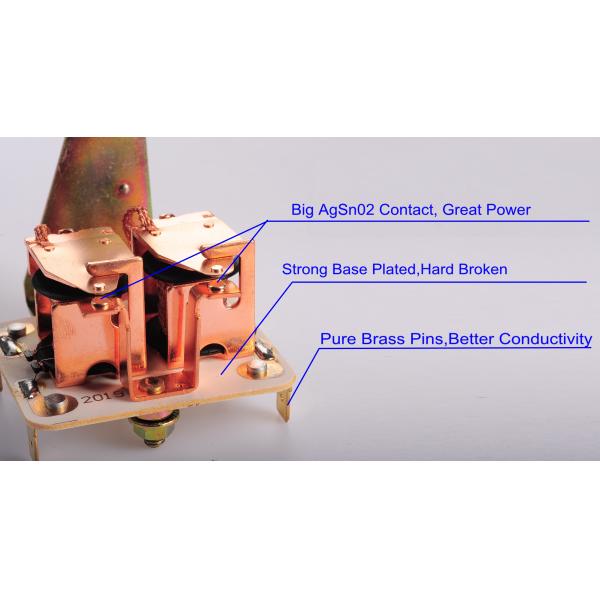

1. Product Detail
In each Headlight Relay housing, there are two independent relays
which may be used for variety of applications. Headlight Relay
provides maximum headlight illumination while eliminating the need
to use H-type bulbs, which increase power dissipation. It limits
the failure of switches relate to headlight and fog lamp systems.
2.Parameter
| Nominal Voltage | 12V | 24V |
| Rated Continuous Load | 30A | 15A |
| Lamp Load | 225W | 225W |
| Contact Form | 2 x Form A | 2 x Form A/ 2 x SPST NO |
| Operating/Drop Out Voltage | < 10V / > 1.2V | < 10V / > 1.2V |
| Maximum Coil Voltage | 20V (<1 min) | 40V (<1 min) |
| Coil Resistance(25 ℃ ) | 35 Ω ± 10% | 100 Ω ± 10% |
| Operating / Release Time | <10 ms / < 15ms | <10 ms / < 15ms |
| Dielectric Strength | > 1000vdc | > 1000vdc |
| Maximum Inrush Current | 150A | 150A |
| Switching Cycles | 100000 | 100000 |
| Vibration | 20-200Hz | 20-200Hz |
| Mechanical Shock | >10g 10ms> 10us | >10g 10ms> 10us |
| Ambient Temperature | -40~ + 80℃ | -40~ + 80℃ |
3.Production Machine
4.Exhibitions
5. Package
Nowadays, package is important, we have various packing methods for
your selection.
1)1pcs in a paper box, 100pcs in a master carton
2)1pcs in a paper box, 10pcs in a bigger paper box, 100pcs in a
master carton
You can also customize your package, as long as the quantity is
considerable.
6.Brand
With quantity 3000pcs, we can print customer brand. Our brand is
MIROTE, without any brand to ship is ok too.
7.Quality Guarantee
1. Normal quality product---Provide 1 year guarantee
2. Best quality product ------Provide 3 years guarantee
Before order we can customized the sample for confirm, and free.
You only need to pay the freight cost from China to your city.
8.Terms of payment
T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages before you pay the balance.
