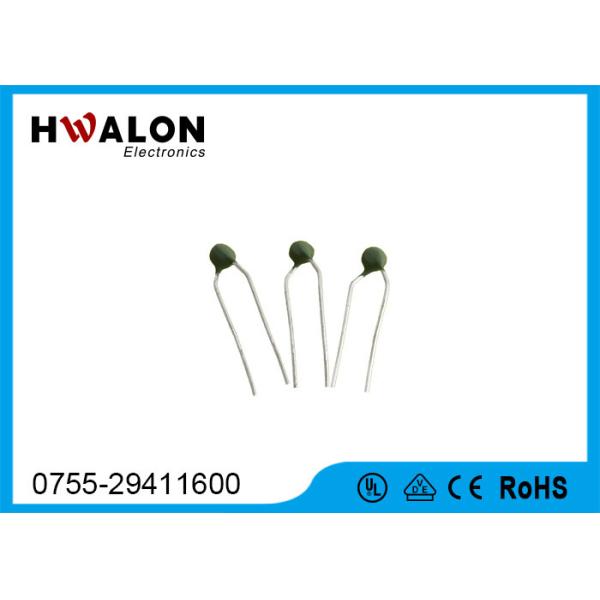

Overheat Protection PTC Thermistor 30V switching power supply
electric oven
Part no. Selection:
| part no. | max. voltage (V) | switch temp. ( ℃) | protection temp. ( ℃) | R25 ℃ ( Ω ) max | Rs-15 ℃ ( Ω) | Rs ( Ω) | max current(mA) |
| H6PR101R60 | 30 | 40 | 60 | 100 | 330 | 470 | 100 |
| H6PR101R70 | 30 | 50 | 70 | 100 | 330 | 470 | 100 |
| H6PR101R80 | 30 | 60 | 80 | 100 | 330 | 470 | 100 |
| H6PR101R90 | 30 | 70 | 90 | 100 | 330 | 470 | 100 |
| H6PR101R100 | 30 | 80 | 100 | 100 | 330 | 470 | 100 |
| H6PR101R110 | 30 | 90 | 110 | 100 | 330 | 470 | 100 |
| H6PR101R120 | 30 | 100 | 120 | 100 | 330 | 470 | 100 |
| H6PR101R130 | 30 | 110 | 130 | 100 | 330 | 470 | 100 |
| H6PR331R60 | 30 | 40 | 60 | 330 | 1500 | 2200 | 100 |
| H6PR331R70 | 30 | 50 | 70 | 330 | 1500 | 2200 | 100 |
| H6PR331R80 | 30 | 60 | 80 | 330 | 1500 | 2200 | 100 |
| H6PR331R90 | 30 | 70 | 90 | 330 | 1500 | 2200 | 100 |
| H6PR331R100 | 30 | 80 | 100 | 330 | 1500 | 2200 | 100 |
| H6PR331R110 | 30 | 90 | 110 | 330 | 1500 | 2200 | 100 |
above dimensions are our conventinal dimensions, we can also OEM
for customers.
Description and features:
- PTC thermistor for overheat protection is a million-time device of automatic protection;
- Recoverability, can be used repeatedly;
- No trigger, noice or sparks;

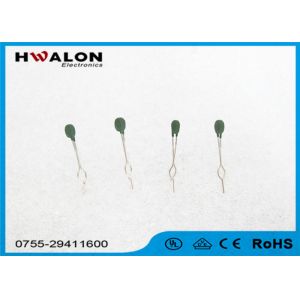

- Two shapes: lead type and surface mount type;
- Lead material: tinned copper wire;
- Electrode material: silver;
- Welding material: tin-silver alloy;
- Encapsulation material: green, silicone, flammability 94V-0.
Competitive Advantage:
1, Convenient installment and small size.
2, No requirement for reseting after over-heat protection.
3, Quick action
4, We can offer equivalent PTC thermistor of Thinking & TDK
5, Long life working time
6, Good stability
7, Wide range protection temperature: 30~150°C
Usages:
1, switching power supply
3, automatic lathe
4, transformers
2, electro-thermal oven
5, LED control panel
Company Introduction:
We are the leading manufacturer specializing in various kinds of
PTC/NTC Thermistor,Varistor,PPTC etc. Furthermore, all our products
has passed RoHs,SGS,ISO 9001.
And we have customers from all over the world, mainly target market
are Europe, North America, Asia.
Our factory has equipped with advanced level of automated
production line, advanced equipment,strong technical force, product
lining, guarantee of quality and satisfactory service.
In this case,we would like to establish harmonious business
relationships with clients from all over the world based on the
principle of equality and mutual benefit of both party.
Typical application circuit: overheat protection circuit and
overheat sensing heat.
high precision thermal protection Overheat Protection Thermistor
for transformer, LED lighting
