    AA104VD02 Mitsubishi Industrial LCD Displays 10.4 Inch 640×480 RGB Vertical Stripe Pixel

    Ask Lasest Price
    Brand Name : Mitsubishi
    Model Number : AA104VD02
    Certification : ISO9001
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    AA104VD02 Mitsubishi Industrial LCD Displays 10.4 Inch 640×480 RGB Vertical Stripe Pixel

    AA104VD02 Mitsubishi a-Si TFT-LCD ,10.4 inch, 640×480 for Industrial Application

    AA104VD02 Basic Information

    Panel ModelAA104VD02
    Panel BrandMitsubishi
    Descritiona-Si TFT-LCD ,10.4 inch, 640×480
    Panel Typea-Si TFT-LCD
    Model AliasT-55333GD104J-FW-A-AAN
    Operating Temperature-20 ~ 70 °C
    Storage Temperature-20 ~ 80 °C
    RemarksNCM


    Packaging & Delivery
    Packaging: Safety Package For all of our LCD Screen Panel Replacements.
    Details: 1. Antistatic bag
    2. Layers of cartons
    3. Foam Box
    4. Carton Box.

    AA104VD02 Mechanical Features

    Dot Resolution640(RGB)×480 (VGA)
    Pixel ConfigurationRGB Vertical Stripe
    Pixel Density76 PPI
    Aspect Ratio4:3 (H:V)
    Form FactorFlat Rectangle Display
    Dot Pitch0.110×0.330 mm (H×V)
    Pixel Pitch0.330×0.330 mm (H×V)
    Weight600g (Typ.)
    SurfaceAntiglare, Hard coating (3H)
    Active Area211.2×158.4 mm (H×V)
    Bezel Area215.4×161.8 mm (H×V)
    Outline Dimension230×180.2 mm (H×V)
    Outline Depth10.5±0.5 mm
    Holes & BracketsSide mounting holes (4-M3) on left, right bezel
    Landscape or PortraitLandscape type
    Touch PanelWithout


    Shipment:
    (1) Worldwide shipping. Any delivery way you want to choose, please contact us.
    (2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
    (3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
    (4) Delivery time is approximate:
    ------Via DHL, Fedex, UPS: 3-7working days
    ------Via EMS:7-15 working days
    ------Via Direct Express Line:1-3 working days.

    AA104VD02 Optical Features

    Display ModeTN, Normally White, Transmissive
    Brightness500 cd/m² (Typ.)
    Contrast Ratio600 : 1 (Typ.) (Transmissive)
    Display Color262K (6-bit)
    Color Gamut40% NTSC (CIE1931)
    Response Time4/12 (Typ.)(Tr/Td)
    Viewing Angle70/70/65/65 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction6 o'clock
    White color ChromaticityWx:0.313; Wy:0.329
    White Variation1.30 (Max.)(5 points)
    Sunlight ReadableN


    The reasons you choose us
    1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
    2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
    3).Fast delievery! Delivery time will be faster than others.
    4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
    5).Best sale-service! Professional team to service with you before sale, on sale & after service.

    AA104VD02 Electronics Feature

    Vertical Frequency60Hz
    Reverse ScanYes (180°)
    Total Power Consumption6.6W (Typ.)


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    AA065VE11-DA-01Mitsubishi6.5"640×480
    AA084VC08Mitsubishi8.4"640×480
    AT070MJ01Mitsubishi7.0"800×480
    AA084SD11-DA-01Mitsubishi8.4"800×600
    AA104XF02--T1Mitsubishi10.4"1024×768
    AA104VJ02--T1Mitsubishi10.4"640×480
    AA084XB11--T2Mitsubishi8.4"1024×768
    AA084SB11--T2Mitsubishi8.4"800×600


    We also have other industrial LCD panels, pls contact to us for the further information

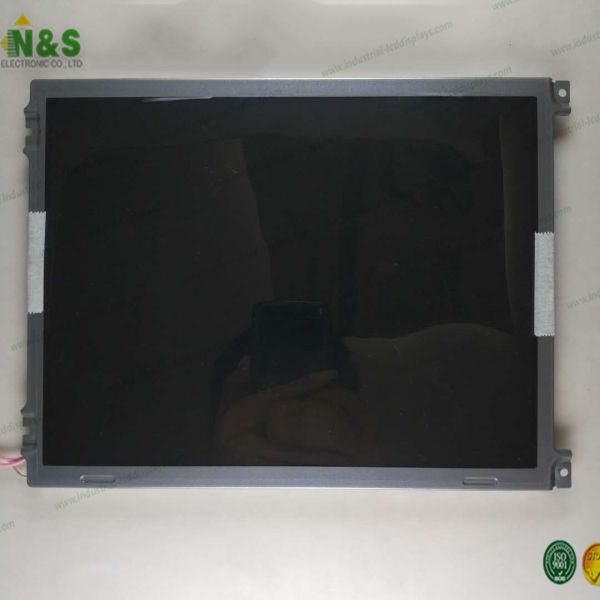

    AA104VD02 pictures



    Quality AA104VD02 Mitsubishi Industrial LCD Displays 10.4 Inch 640×480 RGB Vertical Stripe Pixel for sale
