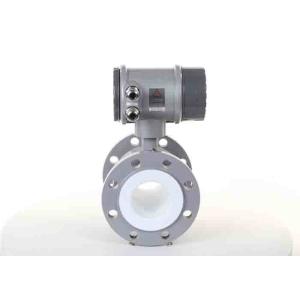

    District / Sectional Electronic Water Flow Meter 16 - 40 Bar Pressure

    Ask Lasest Price
    Brand Name : Iflow
    Model Number : EMF80-E
    Certification : ISO9001, CE
    Price : negotiable
    Payment Terms : T/T, L/C, D/P, Western Union
    Supply Ability : 1000 sets per month
    Delivery Time : 2-4 weeks
    • Product Details
    • Company Profile

    District / Sectional Electronic Water Flow Meter 16 - 40 Bar Pressure

    Electromagnetic flow meter for district and sectional water metering Communication: RS485, pulse output

    Magnetic meter introduction
    The magnetic flow meter is an induction instrument based on Faraday’s law of electromagnetic induction. Electromagnetic flow meters are widely used in the chemical, environmental protection, metallurgy, pharmaceutical, paper & pulp and water industries. Besides measuring flow of general conductive liquids electromagnetic flow meters can measure the flow of liquids with solids and high-viscosity fluids. The liquids can be salty, acid or alkali.


    Specification:


    1. Line Diameter: 1 inch - 48 inch
    2. Operation pressure: 16 bar - 40 bar
    3. Liquid temperature: 0-80 C (Rubber), 0-120 C (PTFE)
    4. Environment temperature: 0 - 60 C
    5. Protection: IP68 (flow sensor)
    6. Explosion proof: EXID


    Standard features

    Flow transmitter typeRemote or compact
    Pipe diameterDN15 mm - DN3000 mm
    Power supplyAC85-230V / DC 8-36V / Battery / PV
    Accuracy0.5%
    Power consumption< 6W
    ProtectionIP68 (flow sensor)
    Media temperature

    Hard rubber: -20 C - 70 C

    PTFE: -20C - 120 C

    Environment temperature-20 to 50 C
    Explosion proofEXID
    Flow directionforward and reverse
    CommunicationModbus RS485 / Bacnet / GPRS / NT-Iot / Lora
    Signal output4-20 mA, pulse, frequency

    Applications:
    Irrigation, clean water, paper pulp, slurry, sewage, waste water, HVAC/R system monitoring, residential water meter, industrial & commercial water utilities.


    Parameters

    Product nameElectromagnetic flowmeter
    Product typeLocal|compact displayRemote displaySignal converter
    ModelIYF-EIYF-FIRT
    Pipe Diameter (mm)DN10-DN2000
    Power supply100-240 VAC / 18-36 VDC
    Accuracy+ 0.5%+ 0.5%+ 0.5%
    Power consumption<6w<6w<6w
    Enclosure ratingIP65IP68IP65
    Liquid temperature-25-120℃-25-120℃-25-120℃
    Ambient temperature-25-50℃-25-50℃-25-50℃
    Relative humidity10-90%10-90%10-90%
    Meter ratio1:1001:1001:100
    Flow directionBi-direction flowBi-direction flowBi-direction flow
    CommunicationRS485 / BacnetRS485 / BacnetRS485 / Bacnet
    Signal Output4-20mA/Pulse/Frequency4-20mA/Pulse/Frequency4-20mA/Pulse/Frequency
