Durable Double Glazing Desiccant Filling Machine 50 HZ Easy Operation

    Buy cheap Durable Double Glazing Desiccant Filling Machine 50 HZ Easy Operation from wholesalers

    Buy cheap Durable Double Glazing Desiccant Filling Machine 50 HZ Easy Operation from wholesalers
    • Buy cheap Durable Double Glazing Desiccant Filling Machine 50 HZ Easy Operation from wholesalers

    Durable Double Glazing Desiccant Filling Machine 50 HZ Easy Operation

    Ask Lasest Price
    Brand Name : JINAN LIJIANG
    Model Number : LJGZ2020
    Certification : CE certification
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 30 sets per month
    Delivery Time : 5 days
    • Product Details
    • Company Profile

    Durable Double Glazing Desiccant Filling Machine 50 HZ Easy Operation

    Automatic desiccant filling machine for double glass making with easy butyl changing device with touch screen


    APPLICATION

    Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant.

    Automatic desiccant filling machine for double glass making with easy butyl changing device with touch screen can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant. Automatic desiccant filling machine for double glass making with easy butyl changing device with touch screen improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.


    Main Features

    1. Touch screen makes the operation more easily.

    2. The pneumatic components adopt Taiwan AIRTAC brand.

    3.It is available to fill the bent spacer bars and the ordinary corner connected ones.It owns the unique and advanced feeding device.

    4. Automatically drill the holes, fill the desiccant and seal the sealant.

    5. The filling height can be adjusted according to the size of the spacer bar.

    6. Controlled by Siemens PLC. The operation interface is visual and succinct.


    NameBrandNameBrand
    PLCGerman SIEMENSTripletTAIWAN AIRTAC
    Low voltage electrical apparatusGerman SIEMENSSolenoid valveTAIWAN AIRTAC
    SensorKorea AUTONICSGas drillerTaiwan BOA
    GuideTaiwan TBISwitch powerTaiwan TEND

    Main technical parameter


    Filling aluminum frame’s maximum size2000mm*2000mm
    Filling aluminum frame’s minimal size300mm*250mm
    Article aluminum specifications5.5-24mm
    Air source≥0.65MPa
    Power supply and power consumptionAC220V 50Hz 1.8KW
    Molecular sieve diameter needed0.5-0.9mm
    Dimension1300mm*1100mm*3650mm

    Machine details

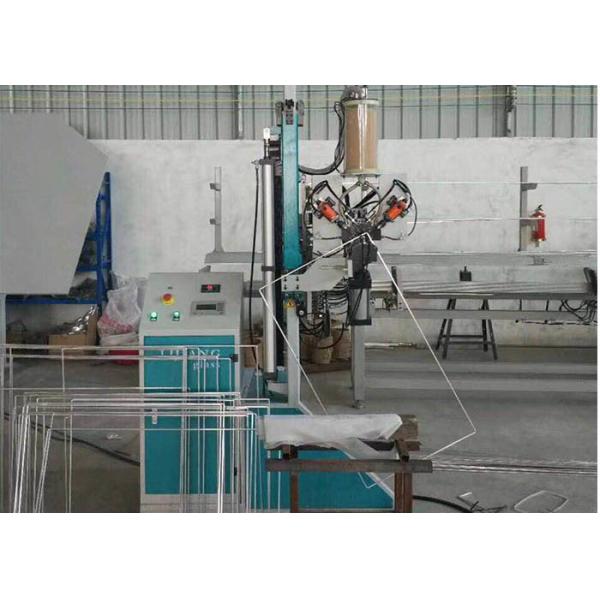

    Quality Durable Double Glazing Desiccant Filling Machine 50 HZ Easy Operation for sale
