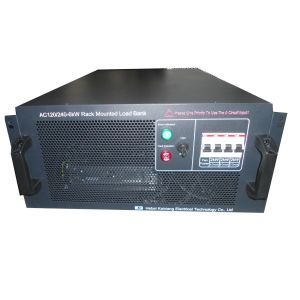

Air Flow Control Rack Mounted Load Bank Grade F With Resisitive Power 6 KW

    Buy cheap Air Flow Control Rack Mounted Load Bank Grade F With Resisitive Power 6 KW from wholesalers

    Buy cheap Air Flow Control Rack Mounted Load Bank Grade F With Resisitive Power 6 KW from wholesalers
    • Buy cheap Air Flow Control Rack Mounted Load Bank Grade F With Resisitive Power 6 KW from wholesalers
    • Buy cheap Air Flow Control Rack Mounted Load Bank Grade F With Resisitive Power 6 KW from wholesalers

    Air Flow Control Rack Mounted Load Bank Grade F With Resisitive Power 6 KW

    Ask Lasest Price
    Brand Name : Kaixiang
    Model Number : AC120/240-6kW
    Certification : ISO9001
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 Sets / Month
    Delivery Time : Within 30 days
    • Product Details
    • Company Profile

    Air Flow Control Rack Mounted Load Bank Grade F With Resisitive Power 6 KW

    AC120/240-6kW Rack Mounted Load Bank With 60HZ And Resisitive Power 6kW

    Introduction

    AC120/240-6kW Rack Mounted Load Bank , which can be used as terminal load test connectivity and reliability of power periodic line, safety of electric transmission line, battery.etc. Coordinate other power switchover. Also be used as simulate heat source of rack mounted server, test the air cooling system and air flow control.

    Application

    AC120/240-6kW Rack Mounted Load Bank With 60HZ And Resisitive Power 6kW

    When building a data center, any unexpected glitch during commissioning can cause serious project delays, wasted productivity, and significant budget overruns. So integrating rack mounted load banks into the design phase can help our data center clients keep projects on budget and on time.

    Technical specification

    Parameter
    Rated voltage/frequencySingle phase120/240VAC/60Hz
    Max Load PowerResisitive Power: 6kW
    Load ResolutionResistive Load: 3 steps. A circuit 2kW; B circuit 2kW;C2kW
    Power Factor1
    Load Tolerance+(0~10%)
    Insulation GradeGrade F
    Way of WorkingContinuous Working
    CoolingForced air cooling, intake air in front and exhaust cooling in back
    Case ColorBlack
    Case DimensionAbout 430mm*600mm*222mm(L×W×H)
    Weight

    About 20 kgs

    About 18kgs

    Operating Ambient Parameters


    Ambient Temperature ttTeTemperatureTemperature

    Temperature

    -10℃~+40℃
    Relative Humidity≤95%
    Altitude≤2500 meters
    Atmospheric Pressure86~106kPa
    Main features

    (1) Load Test: User can load any power within rated power, and test the output capacity of under test power supply.

    (2) Control Mode: load bank equip with voltage select switch and 3 load steps switch, can choose voltage by voltage select switch and control load/unload by 3 ABB air switch.

    (3) Fan Power Supply: Fan is installed near the air outlet, and powered on A loop socket. Please give priority to the use A loop when using this load bank, the fan start after A loop is connected to power supply, then can load/unload through 3 gear air switches combination.

    (4)Temperature Protection: There will be sound and light alarm when the load bank temperature exceeds the safety threshold value.

    (5) Load bank Cable: The internal cable adopts multi core flame retardant flexible cord, and with glass fiber casing protection.
