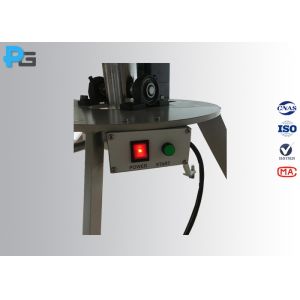

Manual Electrical Safety Test Equipment Stainless Steel Inclined Plane Device

IEC60335-1 Hand-actuated Electrical Safety Test Equipment Inclined Plane Device

1. Description of Inclined Plane Device:

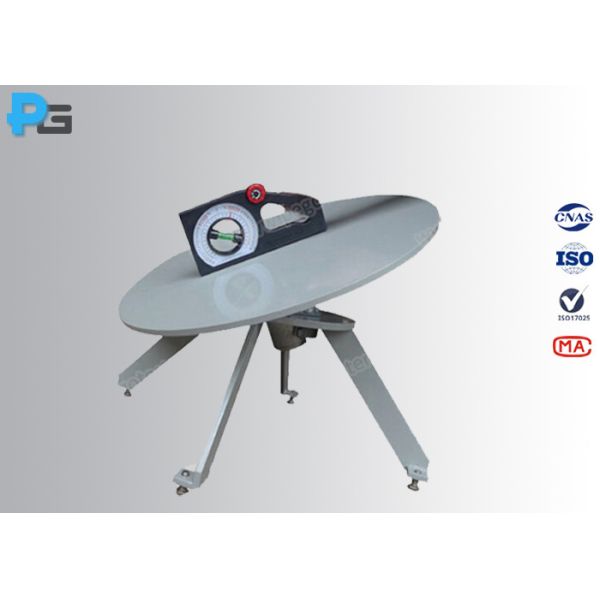

This inclined plane device is designed and manufactured in accordance with the IEC60335-1 clause 20.1. The Stability Tester is to determine the stability of electric appliances which are used on a table or on the floor. The device consists of a surface and an angle adjusting device, with angles 0~15° adjustable.
The appliance is placed in any normal position of use on a plane inclined at an angle of 10° to the horizontal, the supply cord resting on the inclined plane in the most unfavourable position. However, if part of an appliance comes into contact with the horizontal supporting surface when the appliance is tilted through an angle of 10°, the appliance is placed on a horizontal support and tilted in the most unfavourable direction through an angle of 10°.

2. Specifications of Inclined Plane Device:

3. Key Advantages of Inclined Plane Device

​​​​1) The diameter of the surface can be customized according to client's specimen

2) The inclined plane device is made of high-quality sprayed steel plate

4. Application of the Inclined Plane Device

The inclined plane device is suitable for stability testing of home appliances that need to work on surface, such as refrigerators, washing machines, air conditioners etc.

5. FAQ

1). Can you provide third-lab calibration certificate?

Answer: Yes, the equipment can be sent to the third-labs authorized by ISO17025 for calibration and get the calibration certificate.

2). What's the warranty of the inclined plane device?

Answer: 12 months.

3). What package will be used for shipment?

Answer: It will be packed in a wooden case.
