PDLC Optical Cable Assembly Waterproof Protected Cable Outdoor
Communication

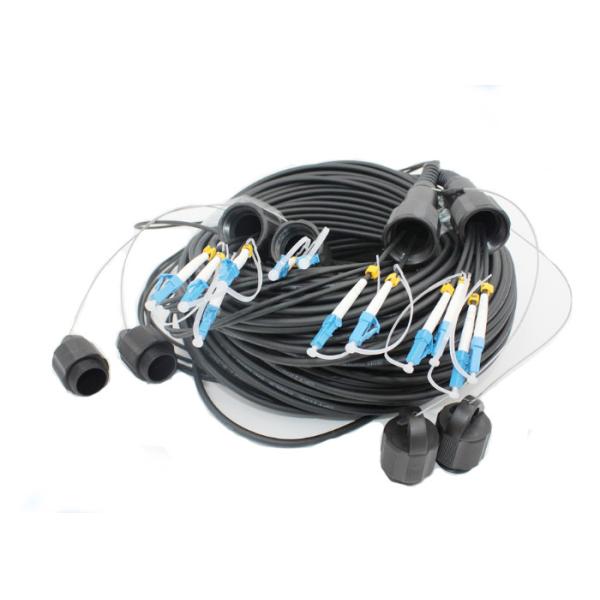

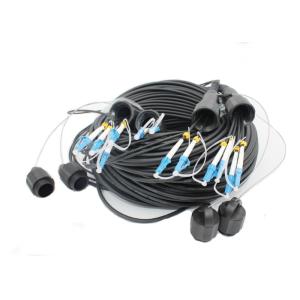

PDLC Optical Cable Assembly Waterproof Outdoor Protected Cable is standard size for Duplex LC Connectors, and the outer housing
with metal protective device. The connecting is safe and reliable.
Also have the functions of waterproof, dustproof. This patch cords
widely used in FTTA, Base station, and the outdoor waterproof
condition.
Features
The PDLC Waterproof patch cord used for outdoor RRU transmitting
optical signal and remote fiber feeder etc;
1. Standard Duplex LC connector, well connected with standard LC
adaptor
2. Available Single mode and Multimode
3. IP67 protection, salt-mist proof, humidity proof, dust proof
4. Low insertion/return loss, steady optical transmitting.
5. Light weight, waterproof, dustproof, moisture proof, Metal hard
housing.
Applications
1. Widely used in FTTA & FTTH
2. Used for 3G 4G base station
3. BBU, RRU, RRH, LTE
PDLC Outdoor Armoured Fiber Assembly Specifications
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Mechanical life | 500cycles |
| Working temperature | -40°C~+70°C |
| Storage temperature | -40°C~+70°C |
| Operating temperature | -10°C~+50°C |
| Protection Level | IP67 |
| Tensile Data | Tensile between junction and fiber cable≥180N |
| Out shell inflaming retarding | UL94 V-0 |
| Out shell Uvioresistant | UL 746C |
| Authentication | Meet with RoHS |
1 Cable Parameters
| FiberCount | 2 Fibers |
| Fiber Type | SM G657A, or MM 50/125 or MM 62.5/125 |
| Buffer | Diameter | 900um±10um |
| Material | LSZH |
| Simplex cable | Diameter | 2.0mm±0.1mm |
| Material | LSZH |
| Color | SM: Blue and Yellow MM: Orange and Grey |
| Filler | Diameter | 2.0mm±0.1mm |
| Material | LSZH |
| Color | Black |
| Strength Member | Kevlar |
| Jacket | Diameter | 7.0±0.1mm |
| Material | LSZH |
| Color | Black |
2. Connector Specification
2.1 Single mode
| ITEM | PARAMETER |
| Connector type | LC/UPC, SC/UPC, FC/UPC, ST/UPC | LC/APC, SC/APC, FC/APC, ST/APC |
| Insertion Loss | <=0.2db | <=0.3db |
| Return Loss | >=50db | >=60db |
| Fiber mode | Single-mode |
| Operating wavelength | 1310, 1550nm |
| Test wavelength | 1310, 1550nm |
| Repeatability | <=0.1 |
| Interchangeability | <=0.2dB |
| Durability | <=0.2dB |
| Fiber Length | 1m, 2m….. other length optional |
| Length and tolerance | 10cm |
| Operating Temperature | -40C ~ +85C |
| Storage Temperature | -40C ~ +85C |
