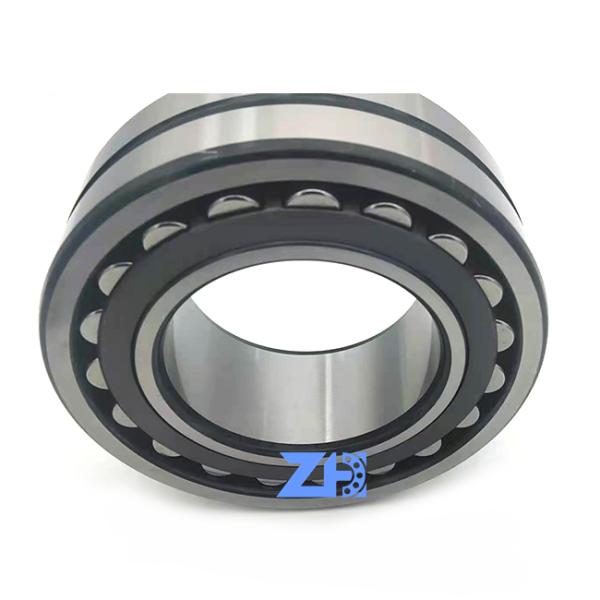

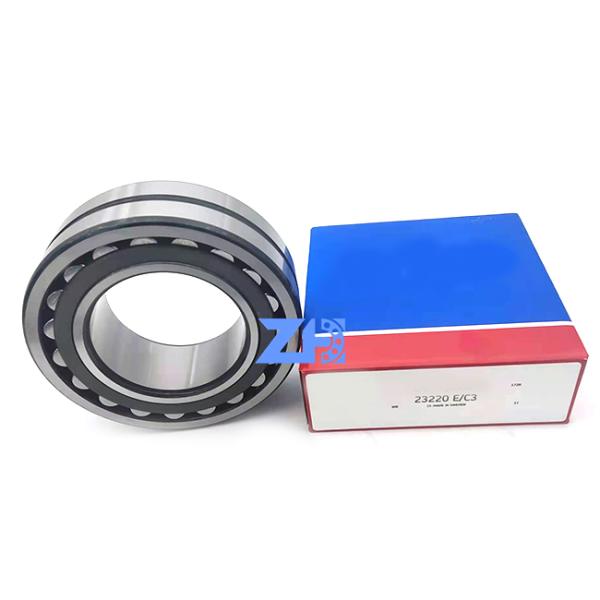

23220CC 23220C4W33 23220RS P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing

    Buy cheap 23220CC 23220C4W33 23220RS    P0  P6 P5 P3 P4 P2  Quality LEVEL   CHROME   STEEL  Spherical  Roller  Bearing from wholesalers

    Buy cheap 23220CC 23220C4W33 23220RS    P0  P6 P5 P3 P4 P2  Quality LEVEL   CHROME   STEEL  Spherical  Roller  Bearing from wholesalers
    • Buy cheap 23220CC 23220C4W33 23220RS    P0  P6 P5 P3 P4 P2  Quality LEVEL   CHROME   STEEL  Spherical  Roller  Bearing from wholesalers
    • Buy cheap 23220CC 23220C4W33 23220RS    P0  P6 P5 P3 P4 P2  Quality LEVEL   CHROME   STEEL  Spherical  Roller  Bearing from wholesalers
    • Buy cheap 23220CC 23220C4W33 23220RS    P0  P6 P5 P3 P4 P2  Quality LEVEL   CHROME   STEEL  Spherical  Roller  Bearing from wholesalers

    23220CC 23220C4W33 23220RS P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing

    Ask Lasest Price
    Brand Name : ZH
    Model Number : 23220CC
    Price : Factory price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 30000 Set/Sets per Month
    Certification : IS09001
    MOQ : 1
    • Product Details
    • Company Profile

    23220CC 23220C4W33 23220RS P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing

    23220CC 23220C4W33 23220RS P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing

    Product introduction

    Spherical Roller Bearing 100mm x 180mm x 60.3mm 23220 CC/W33

    The SKF Spherical Roller Bearing is designed to accommodate misalignment between the shaft and housing.(Good choice at factory price)

    They have high load carrying capacities and are self-aligning, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearing can be used in a modular syst em,


    including housings, sleeves and nuts. SKF Spherical Roller Bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature.

    The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts. This bearing is self-aligning and can handle heavy loads in both directions. Additionally,

    it accommodates misalignment with virtually no increase in friction or temperature. For increased wear resistance, SKF Spherical Roller Bearing features hardened raceways, cages,

    rollers as well as seals and shields. These bearings are available in a modular system for different applications



    Type of Product
    : Spherical Roller Bearing
    Inside Diameter (d) (mm)
    : 100 mm
    Outside Diameter D (mm)
    : 180 mm
    Material
    : High Carbon Chromium Steel
    Weight (Kg)
    : 6.6 Kg
    Model No
    : 23220 CC/W33
    Basic Dynamic Load Rating
    : 498 kN
    Basic Static Load Rating
    : 600 kN
    Fatigue Load Limit
    : 63 kN
    Limiting speed
    : 3400 r/min
    Reference Speed
    : 2400 r/min
    Width
    : 60.3 mm













    d
    100 mm
    Bore diameter
    D
    180 mm
    Outside diameter
    B
    60.3 mm
    Width
    d2
    114 mm
    Shoulder diameter of inner ring
    D1
    159 mm
    Shoulder/recess diameter of outer ring
    b
    8.3 mm
    Width of lubrication groove
    K
    4.5 mm
    Diameter of lubrication hole
    r1,2
    min.2.1 mm
    Chamfer dimension

    Abutment dimensions


    da
    min.112 mm
    Diameter of shaft abutment
    da
    max.114 mm
    Diameter of shaft abutment
    Da
    max.168 mm
    Diameter of housing abutment
    ra
    max.2 mm
    Radius of fillet

    Calculation data


    Basic dynamic load ratingC
    499 kN
    Basic static load ratingC0
    600 kN
    Fatigue load limitPu
    63 kN
    Limiting speed
    1 700 r/min
    Limiting valuee
    0.3
    Calculation factorY1
    2.3
    Calculation factorY2
    3.4
    Calculation factorY0
    2.2

      Dimensions

      d
      100 mm
      Bore diameter
      D
      180 mm
      Outside diameter
      B
      60.3 mm
      Width
      d2
      114 mm
      Shoulder diameter of inner ring
      D1
      159 mm
      Shoulder/recess diameter of outer ring
      b
      8.3 mm
      Width of lubrication groove
      K
      4.5 mm
      Diameter of lubrication hole
      r1,2
      min.2.1 mm
      Chamfer dimension
