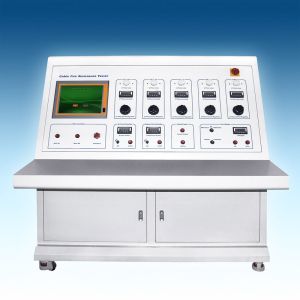

IEC60331 Wire Testing Equipment Cable Fire Resistance Test For Circuit Integrity Under Fire Conditions

Cable Fire Resistance Test for Circuit Integrity Under Fire Conditions

Introduction

Features

• Heat Source : AGF Ribbon Type Propane Gas Burner

• ​Structured with 3 rows of cross holes, Average front width of burner: 15mm, Hole diameter: 1.32mm, Distance between the center: 3.2mm.

• ​A polished hole row in pilot hole for flame preservation in both faces of Burner plate.

• ​Two thermocouples are horizontally installed separated 45mm left and right of burner center-line to check temperature.

• ​Mass flow controllers to regulate the gas and air flow, the accuracy is not less than 1.5%.

• ​Software can show the burner calibration temperature, propane and air flow rate etc.

• ​The current is provided by a three-phase star transformer with sufficient capacity to maintain the required test voltage when circuit integrity cannot be maintained.

• ​Conductor connection indicator (LED indicator) to form a current.

• ​The voltage value is automatically set by software and adjusted by a panel controller.

• ​Digital display of the current and voltage data, accuracy of current is 0.001A.

• ​Current protection using fuse with 2A.

• The real-time measurement data of all current and voltage are collected by computer, and the curves of current and voltage are generated.

• ​When circuit integrity cannot be maintained, the corresponding indicator lamp is extinguished, the computer automatically determines the state and records the time, and sends out the sound and light alarm.

Installation requirements of Fire Resistance Test for Circuit Integrity Under Fire Conditiions
