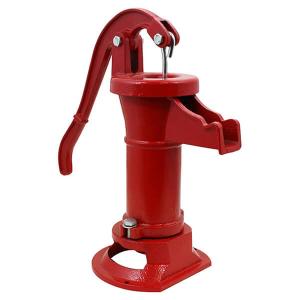

Eco Friendly Cast Iron Pitcher Pump Hand Old Fashioned Water Pump Transparent

Eco Friendly Cast Iron Pitcher Pump Hand Old Fashioned Water Pump Transparent

Description

STEP 1:

Prepare the water outlet for the water that will be dispensed when you begin pumping. If you are draining water to another area, you will need to connect a hose to the spout, so the flow of the water can be directed. If you are gathering water, simply place a bucket under the spout and fill the bucket by pumping.

STEP 2:

Grip the force rod firmly with both hands and lift. The force rod is the long metal handle that moves up and down. As you lift the force rod, a piston is lifted inside the pump. The piston creates suction in the pump and draws water through a check valve and into the pump cylinder

STEP 3:

Push the force rod all the way down. As the force rod pushes the piston down to the bottom of the cylinder, air and water are forced through a check valve located in the piston itself. The water that was located below the piston in the cylinder is now resting on top of it

STEP 4:

Raise the force rod again. As the piston is raised, it not only fills the cylinder with fresh water, but also forces the water on top of the piston out of the water spout at the same time. Continue this action until you have gathered an ample amount of water

Application

1. The hand pumps apply to the pumping of clean water and non-corrosive liquids. They can be used in regions rich in groundwater to pump directly from the ground by inserting a pipe.

2. Equipped with a PYS15 nozzle and a water-yielding hose, the hand pump can be used in watering small vegetable patches, orchards, and croplands. It can also be used in washing vehicles once the nozzle is removed.

3. It can be mounted on a hand truck or mobile platform to spray pesticides or farm chemicals on trees and farmlands.

4. Besides its normal functions of pumping water on ground, the pump can also be used, due to its high lift, as a simplified version of tap water device in places without convenient water supply (e.g. low buildings).

5. It is suitable for processes such as draining pond water in small brick kilns.

6.It can be used as a water-supplying fitting part of solar water heaters.

Specification
