Brand Name : | OEM |
Model Number : | OKY3375-9 |
Certification : | RoHS |
Price : | USD1.29-1.47/piece |
Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Supply Ability : | 100000 Piece/Pieces per Day |
Delivery Time : | 1-3 workdays after payment |

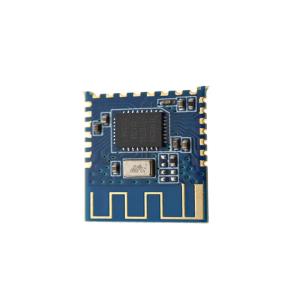

JDY-10 BLE Bluetooth 4.0 Uart Transceiver Module CC2541 Central Switching Wireless Module
Product Description:
prefix = "o" ns = "urn: schemas-microsoft-com: office: office"
JDY-10 Transparent module is based on the Bluetooth 4.0 protocol
standard, the working frequency band is 2.4GHZ, the modulation mode
is GFSK, the maximum transmission power is 8db, the maximum
transmission distance is 80m, with low power consumption, small
size, strong signal, data transmission Stability and other
characteristics.
Specification:
Model | JDY-10 Bluetooth 4.0 slave module |
Kernel | M0 |
Communication interface | serial port |
Working voltage | 1.9-3.6V |
Communication distance | 100 meters (some modules launch power, communication distance than the previous module is much more |
Working current | 90ua |
Suspen mode | 14 uA |
The module is | Bluetooth 4.0 slave |
Product features:1: support Android, IOS phone data through
2: support low power consumption (standby current can reach several
uA)
3: Supports GPIO and UART peripheral interface
4: support AT command operation
5: FCC / CE and other standards can be certified
Application Range
1: Bluetooth LED lighting
Dimension Photo:
Circuit Diagram:
![]() |
