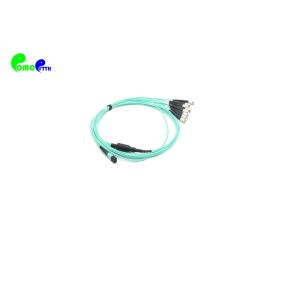

MPO Trunk Cable OM3 8 Fibers Pre - terminated MPO Female to FC UPC
OM3 8 Fibers Fanout 2.0mmWith Aque LSZH Jacket
MPO-FC Straight harness Cables are terminated with MPO and FC
connector on both ends. The 8pcs FC Simplex fanout cables are optimized for 40G QSFP+ PLR4 to
10G SFP+ LR optics direct connection and high-density data center
applications. have same length . It's specifically designed for
high-density fiber patching in data centers which need space saving
and reduce cable management troubles.
OM3/OM4 8F MPO-FC Straight harness Cables are optimized for 40G
QSFP+ SR4 to 10G SFP+ SR, 100G
QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and
high-density data center applications.
This 8 Fiber harness cable is used for a direct connection between
QSFP+ to (4) SFP+ ports with no patch panels or intermediate
trunks in between.
MPO-FC Straight harness Cables’ Specification:
Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
Insertion loss (MPO) (IEC 61300-3-34) | Straight loss:≤0.75dB(max), ≤0.35dB(Typical) Super Low loss:≤0.35dB(max), ≤0.20dB(Typical) | Straight loss:≤0.6dB(max), ≤0.35(Typical) Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical) |
Insertion loss (FC) (IEC 61300-3-6) | ≤0.3dB | ≤0.3dB |
| Return loss(MPO) | ≥60dB(8degree polishing) | ≥25dB |
| Return loss(FC) | APC≥60dB; UPC≥50dB | ≥35dB |
| Durability | <0.3dBtypical change, 200 matings |
| Interchangeability | ≤0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -40 to + 85°C |
Features
1.High repeatability & credibility
2.Competitive price
3.Fast delivery time
4.Low insertion loss
Applications:
1,Optical fiber communications systems;
2,Optical fiber access network;
3,Optical fiber CATV.
4,Optical fiber test equipments;
5,Optical fiber data communications;
6,LAN
End-face Quality (MM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 65 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 65 to 115 | None | None |
| C: Adhesive | 115 to 135 | None | None |
| D: Contact | 135 to 250 | None | None |
| E: Rest of ferrule | None | None |
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
High Quality MPO Cable Guarantee
1. High-performance polishing machine, and complemented by
precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing
process, and making all parameters of the polished MT ferrule
complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of
optical testing required for complex and high fiber count cable
assemblies.
Packaging
This easily taken and well-protected fiber patch cable package has
been labelled and marked by OMC as default
Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm .
Which carton to be used depends on goods Qty .
Packing can be customized.
Company Information:
OMC industry co., limited, which was founded by an expert team, has
been exporting FTTX passive products since 2007. We focus on
providing innovative and integrated FTTX solutions for a variety of
applications/Networks. Our capabilities include product/solution
design, development, enhancement and integration. Our products are
among the highest performing in the industry and truly represent
the best values in the industry. We also offer training, pre and
post-sales support. We help you select the right products for your
Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop
cables;
Indoor armored patch cords fiber cable; Optical patch cords
SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001,
ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s
stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory
price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
