| Brand Name : | Ohmalloy |
| Model Number : | OhmAlloy142A |
| Certification : | SGS, IOS |
| Price : | USD 3-18 per kilogram |
| Payment Terms : | L/C, T/T, |
| Supply Ability : | 80000 kilograms per week |
| Delivery Time : | shipped in 7 days after payment |
OhmAlloy142A
(Common Name:0Cr21Al6)
OhmAlloy142A is a iron-chromium-aluminium alloy (FeCrAl alloy)
characterized by high resistance, low coefficient of electric
resistance, high operating temperature, good corrosion resistance
under high temperature.It is suitable for use at temperatures up to
1250°C.

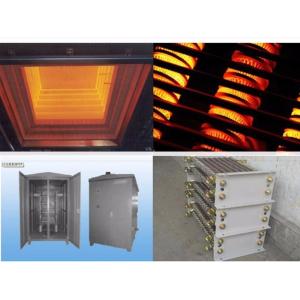

Typical applications for OhmAlloy142A are used in electric ceramic
cooktop,industrial furnace,heaters and catalytic purifier.
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.06 | 0.025 | 0.025 | 0.70 | Max 1.0 | 19.0~22.0 | Max 0.60 | 5.0~7.0 | Bal. | - |
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 520 | 720 | 20 |
| Density (g/cm3) | 7.16 |
| Electrical resistivity at 20℃(Ωmm2/m) | 1.42 |
| Conductivity coefficient at 20℃ (WmK) | 13 |
| Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/℃ |
| 20 ℃- 1000℃ | 14.7 |
| Specific heat capacity | |
| Temperature | 20℃ |
| J/gK | 13 |
| Melting point (℃) | 1500 |
| Max continuous operating temperature in air (℃) | 1250 |
| Magnetic properties | non-magnetic |
Temperature Factor of Electrical Resistivity
| 20℃ | 100℃ | 200℃ | 300℃ | 400℃ | 500℃ | 600℃ | 800℃ | 900℃ | 1000℃ | 1100℃ | 1200℃ | 1300℃ |
| 1 | 1.000 | 1.002 | 1.006 | 1.011 | 1.020 | 1.037 | 1.046 | 1.049 | 1.052 | 1.055 | 1.058 | - |
Style of supply
| Alloys Name | Type | Dimension | ||

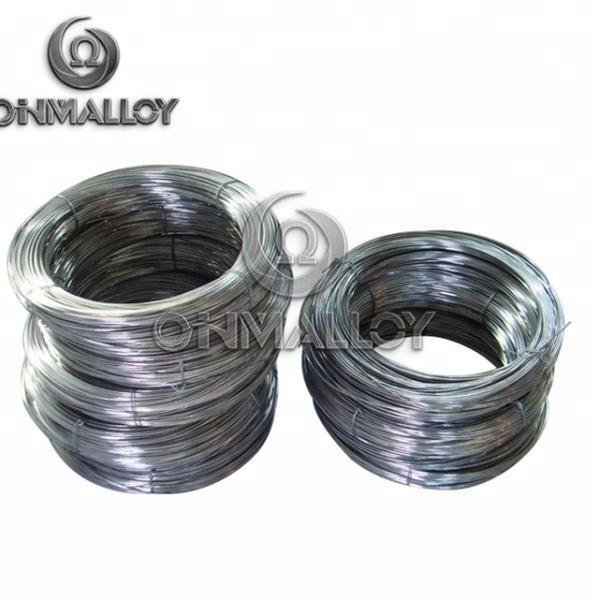

| OhmAlloy142AW | Wire | D=0.03mm~8mm | ||
| OhmAlloy142AR | Ribbon | W=0.4~40 | T=0.03~2.9mm | |
| OhmAlloy142AS | Strip | W=8~250mm | T=0.1~3.0 | |
| OhmAlloy142AF | Foil | W=6~120mm | T=0.003~0.1 | |
| OhmAlloy142AB | Bar | Dia=8~100mm | L=50~1000 | |

|
