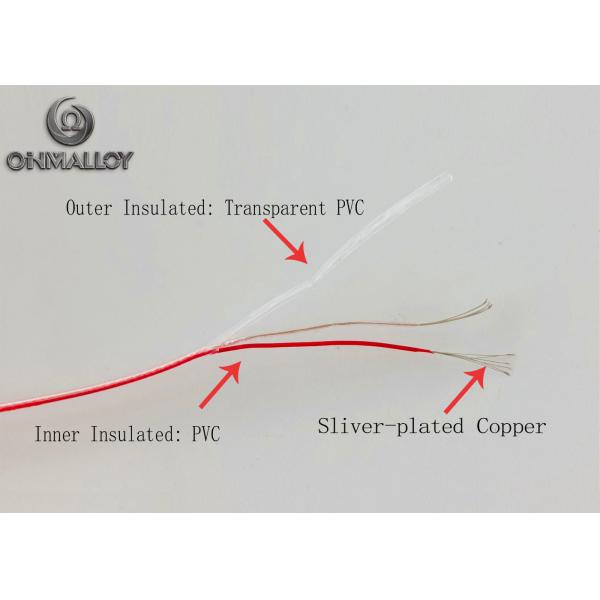

40 AWG PVC Coated Thin Wire Type K Thermocouple Cable 44AWG
0.05mm/2*7*0.08mm Ultra-thin Wire
TYPE K (CHROMEL vs ALUMEL ) is used in oxidizing, inert or dry
reducing atmospheres. Exposure to vacuum limited to short time
periods. Must be protected from sulfurous and marginally oxidizing
atmospheres. Reliable and accurate at high temperature.
Product Details
1. Chemical Composition
| Material | Chemical composition (%) |
| Ni | Cr | Si | Mn | Al |
| KP(Chromel) | 90 | 10 | | | |
| KN(Alumel) | 95 | | 1-2 | 0.5-1.5 | 1-1.5 |
2. Physical Properties and Mechnical Properties
| Material |
Density(g/cm3) |
Melting point℃) |
Tensile Strength(Mpa) |
Volume resistivity(μΩ.cm) |
Elongation rate (%) |
| KP(Chromel) | 8.5 | 1427 | >490 | 70.6(20℃) | >10 |
| KN(Alumel) | 8.6 | 1399 | >390 | 29.4(20℃) | >15 |
3. EMF Value Range at Different Temperature
Material | EMF value Vs Pt(μV) |
| 100℃ | 200℃ | 300℃ | 400℃ | 500℃ | 600℃ |
| KP(Chromel) | 2816~2896 | 5938~6018 | 9298~9378 | 12729~12821 | 16156~16266 | 19532~19676 |
| KN(Alumel) | 1218~1262 | 2140~2180 | 2849~2893 | 3600~3644 | 4403~4463 | 5271~5331 |
| EMF value Vs Pt(μV) |
| 700℃ | 800℃ | 900℃ | 1000℃ | 1100℃ |
| 22845~22999 | 26064~26246 | 29223~29411 | 32313~32525 | 35336~35548 |
| 6167~6247 | 7080~7160 | 7959~8059 | 8807~8907 | 9617~9737 |
Size Range Reference
| Alloys Name | Type | Dimension |
| SP-K-W | Wire | D=0.03mm~8mm |
| SP-K-R | Ribbon | W=0.4~40 | T=0.03~2.9mm |
| SP-K-S | Strip | W=8~250mm | T=0.1~3.0 |
| SP-K-F | Foil | W=6~120mm | T=0.003~0.1 |
| SP-K-B | Bar | Dia=8~100mm | L=50~1000 |
