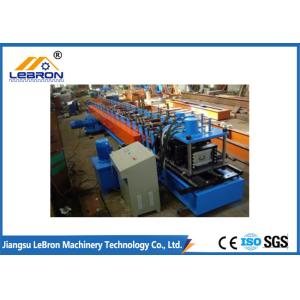

PLC Control Automatic Solar Strut Roll Forming Machine 2018 new
type roll forming made in China
1. Description of Solar Strut Roll Forming Machine
Briefly, a solar panel frame roll forming machine produces the
steel channels often used as supporting frames of the solar panel.
There are standard dimensions for common uni strut channels, i.e.
21*41, 41*41 and 41*61 etc. And also there are punching holes
continuously on the bottom of the channels for joints. The
following are some regular joints or connections.

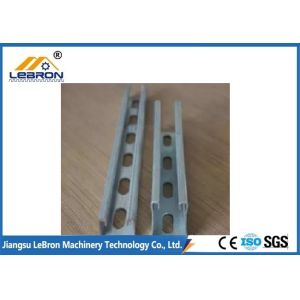

Basic strut channel comes in the open box section, where several
variations are available with small different shapes as well as
different hole patterns for mounting to walls and supports.
Generally, the materials for making the channels are 1.5-2.5mm
thick zin-coating steel or cold rolled steel.
In addition, some other materials are also available for different
applications. For instance, stainless steel will be used where
rusting might become a problem (e.g., outdoors, facilities with
corrosive materials), while aluminium alloy is better material when
weight is an issue or from fiberglass for very corrosive
environments.
A roll forming equipment that manufactures strut channels is strut
channel roll forming machine.
2. Technical Parameter of Solar Strut Roll Forming Machine
Suitable Plate Material: thickness 1.5-2.5mm, Galvanized steel or
blank steel
Working Speed: 8-9 meters / min

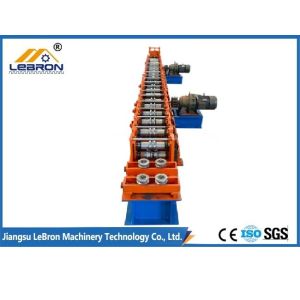

Forming Steps: about 19 stations
Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal
refining
Driven system: Gearbox driven
Main Power with reducer: 18.5KW WH Chinese Famous
The whole machine is controlled by industry computer-PLC.
PLC--Delta, English and Chinese Language

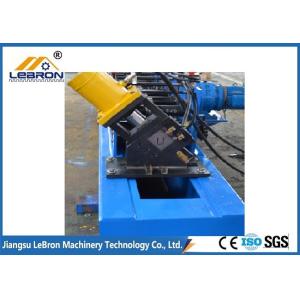

Cutting holder: servo following cutting
Motor power of hydraulic station: 5.5KW
Hydraulic station pressure: 12MPa
Cutting type: hydraulic drive, cut after forming
Material of cutting blade: Cr12Mov , quenching process
3. FAQ
1. Q: What is the MOQ?
A: 1 set.
2. Q: What is the Delivery time?
A: Within 35 workdays.
3. Q: What is the Payment terms you can accept?
A: T/T or L/C.30% deposit,and before shipped we hope to receive the
balance 70%.Also 100% L/C is accepted.
4. Q: What is the Warranty?
A: Within 2 years warranty.All of the technical personnel are ready
to serve you at any time.
5. Q:Can you make the machine according to my design or photo type?
A: Yes.We have an experienced team for working out the most
suitable design and production plan for the machine that you are
going to book with us.
6. Q: How can we be assured that you will deliver us quality
machine with spare parts?
A:1. Customers to send the technical people to our factory for
checking the quality.
2.We can send the technicians to the buyer`s factory for the
installation of the machine.
3.Good after-sales service, its free of charge during the warranty
period.

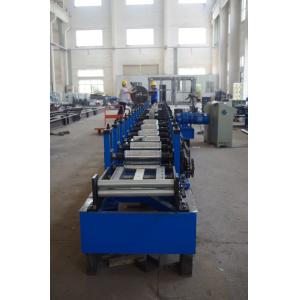

4. Layout of Solar Strut Roll Forming Machine
5. After-sell service
A. Foreign debugging
If you need, we will arrange our professional engineers to help you
install and debug the machines well. Buyer should pay $60 per day
B. Guarantee period
The warranty will be maintenance, maintain in the guarantee period
of 18 months starting from delivery. Because of the quality of
equipment during guarantee period, we will provide the parts free
of charges, which is in the conditions of correct operation.
(Natural disasters or factors which can’t forced by human are
excluded).
C. Training
During installation and adjustment of the equipment, our engineers
shall provide the training to
buyer’s personnel request to operate and maintain the equipment.
Including foundation construction, electrical works, hydraulic oil,
safe operation and non-standard safety items, testing material and
etc.
D. Lifetime services
Life time services to every customer.
