MEGA 2000 Amp 32 Volt Series Automotive Blade Fuses Automotive Bolted Fuse

Name: MEGA 2000 Amp 32 Volt Series Automotive Blade Fuses Automotive Bolted Fuse
Brand: Julun
Price: 1 USD

Ask Lasest Price
Brand Name :	Julun
Model Number :	0298
Certification :	CE/UL/VDE/KC/ROHS
Price :	Negotiable
Payment Terms :	L/C, D/P, T/T,
Supply Ability :	10000/Piece/Weekly
Delivery Time :	7~10 Working days

Add to Cart

Product Details
Company Profile

MEGA 2000 Amp 32 Volt Series Automotive Blade Fuses Automotive Bolted Fuse

MEGA 2000 Amp 32 Volt Series Automotive Blade Fuses , Automotive Bolted Fuse

MEGA_LowTemp_Datasheet.pdf

Specifications

Interrupting Rating: 2000A @ 32 VDC
Voltage Rating: 32 VDC
Operating Temperature Range: -40˚C to + 125˚C
Housing Material: PPA-GF33HS
Terminals: Copper (Silver plated copper available) M8 bolts
Mounting Torque: 12-18 Nm M8

Time-Current Characteristics

% of Rating	Opening Time Min / Max (s)
% of Rating	125	150-275
100	4 hrs / –	4 hrs / –
135	120 s / 1800 s	120 s / 1800 s
200	1 s / 50 s	1 s / 150 s
350	0.300 s / 5 s	0.300 s / 5 s
600	0.100 s / 1 s	0.100 s / 1 s

Ratings

Part Number	Current Rating (A)	Typ. Voltage Drop (mV)	Cold Resistance (mΩ)	I2t (A2 s)
0298125	125	67	0.330	57000 A
0298150	150	62	0.258	59000 A
0298175	175	65	0.232	123000 A
0298200	200	61	0.214	140000 A
0298225	225	57	0.177	317000 A
0298250	250	54	0.144	637000 A
0298275	275	53	0.122	800000 A

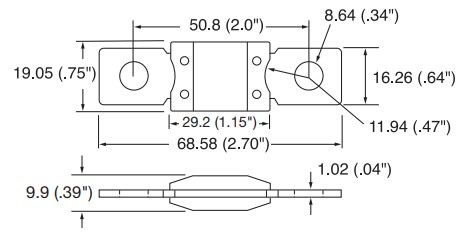

Dimensions

FAQ

Q: What can i do if i got a broken product form A-TEAM FUSE INC?
A: First of all please tell us as soon as possible after we will send a new one to you immediately
but please send the broken product to us .you don't have to worry about the carriage charge we will
pay for that.
Q;Are we a importer or manufacturer?
A;We are a manufacturer
Q:Why you have to choose us
A:High quality assurance. The most competitive price and fast shipping
Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most
competitive price per as your requirements. And we have many types for you to choose.
P.S.:If you can't find any products to meet your requirements. welcome to send us the details
drawings so that we can provide us our professional & best service to you.
