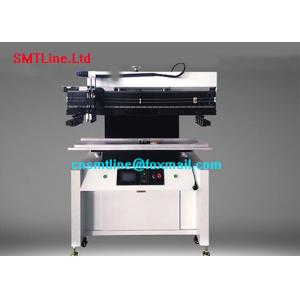

Semi Auto Pcb Printing Solder Paste Screen Printer PCB Size 300 * 400MM

CNSMT standard semi-auto pcb printing machine solder paste stencil screen printer PCB SIZE 300*400MM

Quick Detail

Features:
1. Precision-input SMC guides and Panasonic Inverter motors are used to drive the squeegee holders with high printing accuracy.
2. The printing scraper can be rotated 45 degrees upwards for easy cleaning and replacement of the printing plate and scraper.
3. The blade holder can be adjusted forward and backward to select the appropriate printing position.
4. The combined printing platen has a fixed groove and a PIN, and is easy to install and adjust. It is suitable for single and double panel printing.
5. The school edition adopts stencil net movement, combined with printing (PCB) X, Y, Z. Calibration is quick and easy.
6. Mitsubishi series PLC and Mitsubishi touch screen control are simple and convenient for human-machine dialogue.
7. Can be set to one-way and two-way, a variety of printing methods.
8. With automatic counting function, convenient production statistics.
9. Scraper angle adjustable, steel scraper, rubber scraper are suitable.
10. The touch screen has a screen saver function, and the time can be arbitrarily adjusted to protect the life of the touch screen.
11. Wipe network alarm function, easy to scrub the stencil on time, to ensure print quality.
12. Using AE's unique programming, the print blade holder is easy to adjust.
13. Press speed display, can be adjusted.

Feature

Application

Product Features
★ use the servo system to facilitate accurate positioning.
★ Adopt Japanese THK high-speed guide rail and Japanese Panasonic imported inverter motor to drive the scraper seat to ensure printing accuracy.
★ The printing scraper can be rotated 45 degrees upward to fix and clean the printing plate and scraper.
★ The blade holder can be adjusted forward and backward to select the appropriate printing position.
★ Combined printing platen with fixed groove and PIN, easy installation and adjustment, suitable for single and double panel printing.
★ The school edition adopts stencil net movement, combined with printing (PCB) X, Y, Z. Calibration is quick and easy.
★ PLC and imported touch screen man-machine interface control is simple and convenient for human-machine dialogue.
★ can be set to one-way and two-way, a variety of printing methods.
★ With automatic counting function, convenient production statistics.
★ adjustable blade angle, steel scraper, rubber scraper are suitable.
★ The man-machine interface has a screen protection function to protect the service life of the man-machine interface.
★Using unique programming, printing scraper seat is easy to adjust.
★ Press speed man-machine interface display, digital control can be arbitrary.

CNSMT  was established in June 2005

with a registered capital of 6 million yuan and more than 60 employees.

The company's core personnel of the professional R&D team have 15 years of automated R&D and manufacturing experience.
CNSMT mainly develops and sells SMT pick and place machines, printing presses, reflow welding, wave solder machine, loader and unloader, conveyor, AOI, SPI, and peripheral auxiliary equipment.

The company has developed and mass-produced refow oven and wave welding machine at the end of 2010. The machine is the first in the country.

The sales volume of products reached more than 200 units in half a year.
Our philosophy: integrity, strength first, wholeheartedly for the customer.

Our company adhering to the customer first, service-oriented business philosophy,

benign competition, will continue to work hard to learn, so that more customers to use the quality and cheap SMT china high-end equipment, for customers to save labor costs, factory costs.
