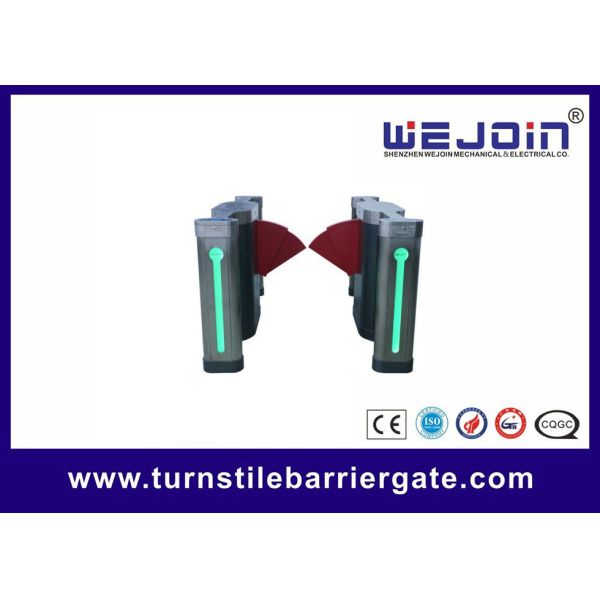

    900mm Width Electronic Flap Barrier Gate / Pedestrian Automatic Systems Turnstiles

    Ask Lasest Price
    Brand Name : WEJOIN
    Certification : CE,ISO
    Model Number : WJTY301
    Price : negotiation
    Delivery Time : 10-30 days
    Payment Terms : T/T,Western Union
    Supply Ability : 50PCS/week
    • Product Details
    • Company Profile

    900mm Width Electronic Flap Barrier Gate / Pedestrian Automatic Systems Turnstiles

    220mm Electronic Flap Barrier Gate / Pedestrian Automatic Systems Turnstiles


    Quick Detail:

    • Machine core: dexterous telescope falp width 220mm only

    • Material: cold rolled steel & aluminum alloy

    • Function: automatic

    • Direction: bi-direction

    • Power supply AC220V±15%, AC110V±15%

    • Motor voltage DC24V (brush motor)

    • Working temperature -25°C~50°C

    • Protection grade IP32

    • Direction: bi-direction


    Description:

    1. WEJOIN flap barrier has features of precise craftsmanship, comprehensive functions and high technology

    2. It has application in high class communities, intelligent buildings, hotels, subway stations and other high level venues.

    3. Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier.

    4. Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicator to realize the intelligent management of access control is comply with the fire safety requirements.

    5. Flap barrier motor can be classified into single motor and double motors. The single one is used for single lane and the double one is used for multi-lanes.

    6. Intelligent flap barrier is a brand-new product of WEJOIN company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control.


    Applications:

    High class communities, intelligent buildings, hotels, subway stations and other high level venues.


    Functions and Features

    1. Alarm for unauthorized access and no access against passenger flow

    2. Input interface available for dry contact and switch signal connection.

    3. Automatic detection for malfunctions.

    4. Adjustable auto-delay closing

    5. Infrared photocells for safety access

    6. A compact electro-mechanical design with unique drive and a self-lock mechanism (no need regular gear clutch structure).

    7. Emergency interface available.

    8. Auto-closing when power on

    9. Auto-open and free access when power off

    10. Traffic light indicating passenger access

    11. Adjustable access directions.

    12. No battery is needed.

    13. Anti-reverse passing


    Specifications

    Model

    WJTY302

    Cabinet dimension

    1715mm(L)×315mm(W)×1080mm(H)

    Stretching-out flap length

    440mm

    The max lane width

    900mm

    Cabinet material

    304 stainless steel & aluminum alloy

    Power supply

    AC220V±15%, AC110V±15% 50/60Hz

    Motor voltage

    DC24V (brush motor)

    Protect grade

    IP32

    Max flow rate

    30~40 people per minute

    Flap opening/closing time

    1s

    reset time when power on

    2s

    Access device input voltage

    dry contact

    working environment

    outdoors (with shelter) and indoors.

    working temperature

    -10°C ~ +50°C
