TG74-1406N1RL Lan Discrete Transformer Modules10 BASE - TX LP88041ANL

    Buy cheap TG74-1406N1RL Lan Discrete Transformer Modules10 BASE - TX LP88041ANL from wholesalers

    Buy cheap TG74-1406N1RL Lan Discrete Transformer Modules10 BASE - TX LP88041ANL from wholesalers
    • Buy cheap TG74-1406N1RL Lan Discrete Transformer Modules10 BASE - TX LP88041ANL from wholesalers

    TG74-1406N1RL Lan Discrete Transformer Modules10 BASE - TX LP88041ANL

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : TG74-1406N1RL
    Certification : UL,RoHS,Reach,ISO
    Price : $0.06-$3.2
    Payment Terms : TT,NET30/60/90 Days
    Supply Ability : 3KK/Month
    Delivery Time : Stock
    • Product Details
    • Company Profile

    TG74-1406N1RL Lan Discrete Transformer Modules10 BASE - TX LP88041ANL

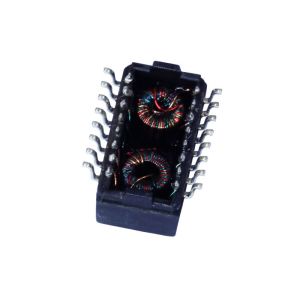

    TG74-1406N1RL 10BASE-TX SMT Lan Toroidal Transformer LP88041ANL

    Quick Details

    1.Single Port Lan Transformer

    2. SMT Transformer LP88041ANL

    3.10base-t transformer TG74-1406N1RL

    4.SMD, 16 pins , 2 Magnetic Core


    10 BASE-TX Single Port Lan Transformer With 16 Pins

    Description:


    ApplicationLAN ETHERNET(PoE&NON PoE)
    AutomDXYES
    CommentRoHS Compliant LP88041ANL
    Configuration RXT,C
    Configuration TXT,C
    ConstructionTRANSFER MOLD
    Cores Per Port2
    Number of PortsSINGLE
    PCBNO PCB
    PackageSMT
    Package Height (Inches)0.213or other
    Package Height (mm)5.40 or other
    Package Length (Inches)0.504 or other
    Package Length (mm)12.808 or other
    Package Width (Inches)0.372 or other
    Package Width (mm)9.450 or other
    RoHS CompliantYES-RoHS-6
    Speed10BASE-TX
    Temperature-40 To +85
    Turns Ratio RX1CT:1CT
    Turns Ratio TX1CT:1CT
    Main P/NLP88041ANL , etc

    Applications:


    Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem


    Competitive Advantage:


    16 years production experience,

    2600 staff,

    100% test

    Flexible delivery time
