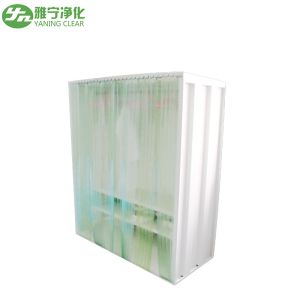

Dust free cleanness clothing closet with antistatic curtain for
clean room
1. Dust free cleanness clothing closet description:
The clean closet can be blown to ensure clean inside the clean
storage closet, mainly used in the clean room buffer room and the
clean room dressing room. Free of dust on the dust-free clothes.
The clean storage closet can be kept clean by blowing. It is mainly
used for the storage of clean clothes in the buffer room of the
clean room or the auxiliary room. It avoids the dust when the clean
clothes are placed. It is used for storing and hanging clean
clothes, keeping the clean clothes clean and fresh, and preventing
the re-contamination of the outside air. On request, the wardrobe
can be made into a glass sliding door and optionally equipped with
an ultraviolet lamp for sterilization. The dust-free wardrobe is a
kind of partial purification equipment widely used in the clean
room. It can effectively remove dust on the dust-free clothes,
reduce the number of times of washing, save costs, improve air
quality, and ensure the cleanliness of the clean room.
Standard Model Technology Parameter:
| Model | YN-CC-1200 | YN -CC-1500 | YN -CC-1800 |
| External Dimension W×D×H)mm | 1200×750×1750 | 1500×750×1750 | 1800×750×1750 |
| Internal Work Zone W×D×H)mm | 1100×650×1250 | 1400×650×1250 | 1700×650×1250 |
| Clean Class Level | 100class(U.S. Federal 209E Standard) |
| Air Velocity | 0.3-0.5m/s | 0.3-0.5m/s | 0.3-0.5m/s |
| Bacteria Falling Number | 0.5 / Time dish (Φ90mm culture plate ) |
| Noise | ≤65dB | ≤65dB | ≤65dB |
| Vibration Half Peak | ≤5um | ≤5um | ≤5um |
| Total Power | 0.4Kw | 0.8Kw | 1.12Kw |
| Power Supply | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Customized design is welcome.
2. Dust free cleanness clothing closet features:
1). German EBM direct-drive high efficiency centrifugal fan, low
noise, maintenance-free, low vibration, long life, stable
performance.
2). High-quality ultra-high efficiency, ultra-low resistance, PTEE
membrane filter - saving more than 30%.
3). The United States Dwyer pressure differential table, indicating
the pressure difference on both sides of the high-efficiency
filter, timely reminder to replace the high efficiency filter.
4). advanced design, according to the United States Federal
Standard 209E design, reliability can be extremely high.
5). Prefilters and chemical molecular filters can be added as
needed to create a better production environment.
3. Dust free cleanness clothing closet structure
1). The filtration efficiency is 99.99% @ 0.3um or 99.9995% @
0.12um.
2). Material can choose stainless steel or full cold plate
electrostatic spray, or both.
3). Pressure display optional digital display or pointer display.
4). Optional yellow light/ultraviolet germicidal lamp.
5). Optional RICHMOND USA in addition to electrostatic ion system.
6). Optional PLC automatic control system.
7). Optional air self-circulation system to prevent secondary
pollution.
Clean wardrobes and self-cleaning wardrobes are mainly used in air
purification industry clean rooms, clean rooms, laboratories,
operating rooms, and GMP workshops.
